PosiTest HHD Kit
High voltage Holiday Detector
Detects holidays, porosity, pinholes, leaks, and other discontinuities in coatings, linings, and membranes using pulse DC
- Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue
- Regulated pulse DC voltage output that won't change under load— ±5% voltage accuracy
- Voltage calculator feature—choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage
- Extensive electrode options—choose from a wide range of rolling spring and flat wire brush electrodes or use electrodes from other manufacturers with optional adaptors—custom sizes available upon request
- Long Form Certificate of Calibration included with each instrument
Conforms to ASTM D4787/D5162/D6747/D7953/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1

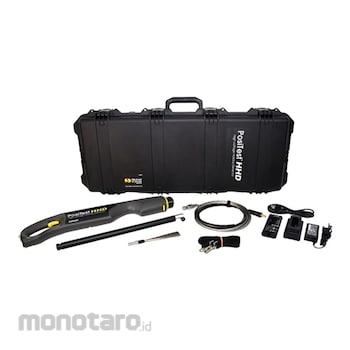

Includes:
PosiTest HHD,
7.6 m (25') ground (earth) cable with ground clip,
72 Wh Li-ion battery pack with built-in charge state indicator,
Smart charger with universal AC voltage input,
Stainless steel fan brush,
50 cm (20" ) electrode rod with thumb screw,
Shoulder strap,
Instruction Manual,
Durable Pelican Storm case,
Long Form Certificate of Calibration traceable to NIST,
Two year warranty
Defelsko PosiTest High Voltage Holiday Detector
#Grup produk P107882473
Spesifikasi
| Output Voltage Range (kV) | 0.5 - 35 |
|---|---|
| Output Voltage Adjustment | 0.5 kV — 1 kV: 10 Volt Steps 1 kV — 35 kV: 100 Volt Steps |
| Output Accuracy (%) | ±5 |
| Pulse Duration (µs) | 10 |
| Pulse Repetition Rate (Hz) | 30 |
| Coating Thickness Range (mm) | up to 20 (780 mils) |
| Battery Size (Wh Li-ion) | 72 |
| Case | Pelican Storm extreme duty waterproof case |
| Included Electrode Rod (cm) | 50 (20 inch) |
| Operating Temperature (°C) | -20 to 60 (-4° to 140°F) |
| Shoulder Strap | Included |
| Typical Battery Life (for selected rolling springs @ 10 kV, ɸ 12inch) | 40 hrs. |
| Typical Battery Life (for selected rolling springs @ 10 kV, ɸ 40inch) | 30 hrs. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Simple- Easy-to-use with bright, color LCD
- Ready to measure—comes with everything needed for testing
- Audibly and visibly alerts when flaws/holidays are detected
- Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
- Voltage calculator feature—choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage
Versatile
- A wide range of rolling spring electrodes and wire brushes are available. Custom sizes available upon request.
- Optional handheld wand accessory coverts the detector into a wand configuration ideal for testing hard-to-reach areas (suitable for voltages < 15 kV)
- Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes
- User adjustable voltage range from 0.5 – 35 kV
Safe
- Press and hold Safety Trigger helps prevent accidental high voltage generation
- 7.6 m (25') ground (earth) cable with locking connector and spring clamp
- Shock proof/creep proof—internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1.
Durable
- Rugged, environmentally sealed ABS plastic enclosure
- Weatherproof, dustproof, and shockproof
- Included hard shell case with custom foam inserts for superior protection
- Two year warranty
Accurate
- Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode.
- Long Form Certificate of Calibration included with each instrument
- Conforms to national and international standards including ISO, ASTM, and NACE
Powerful
- Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for differing environments.
- Removable Smart lithium-ion battery with built-in charge state indicator
