Kramer 4K60 4:4:4 HDMI and RS–232 Transmitter over Ultra–Reach MM/SM Fiber Optic
#Grup produk P107869898
Spesifikasi
| Input | 1 HDMI 4K60 4:4:4 |
|---|---|
| Output | 1 Optical LC Ports: -1 RS-232 |
| Video Max Resolution | 4096x2160@60Hz 4K@60 (4:4:4) |
| Video Compliance | HDMI 2.0 and HDCP 2.2 |
| Bandwidth Video Max | 18Gbps |
| Enclosure Cooling | Convection ventilation |
| Accessories Included | MM SFP+ transceiver, power adapter, power cord, mounting bracket set |
| Current Comsumption (A) | 2 |
| Current Comsumption (mA) | 480 |
| Enclosure Size | Tools |
| Enclosure Type | Aluminium |
| Extended Rs-232 Baud Rate | 300 to 115200 |
| Extension Line Optical Fiber | Multimode (MM) or singlemode (SM) |
| Extension Line Optical Module | Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included) |
| Standards Compliance Environmental | RoHs, WEEE |
| Standards Compliance Safety | CE, UL |
| User Interface Controls | Reset button |
| User Interface Indicators | Source detection, sink detection, optical link and power LEDs |
| Voltage (V) | 12DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

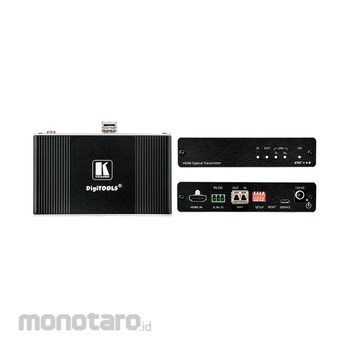

676T is a high−performance HDMI fiber transmitter for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals. 676T converts the HDMI and RS−232 input signal to an optical signal that is transmitted over a fiber optic cable to a compatible receiver that converts it back to HDMI and RS−232 signals. 676T includes a multi−mode SFP+ transceiver, but can be used with any Kramer certified SFP+ transceiver, such as a single−mode SFP+ transceiver.
Fitur
High Performance Standard Fiber Extender — HDMI fiber transmitter for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi–mode SFP+ included). Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units.
Multi–drop Signal Distribution — Use optical splitters to extend the input signals from a single transmitter to multiple receivers, for displaying the same content on multiple display devices using optical splitting only, with no need for AV distribution amplifiers.
HDMI Signal Extension — HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD as specified in HDMI 2.0.
Power Saving — With CEC ON/OFF function, shut down a display device automatically when not in use, and auto power it ON upon presentation start.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, to enable data transmission and control of devices.
Cost–Effective Maintenance — Status LED indicators for power, source, sink and fiber link connections detection facilitate easy local troubleshooting.
Easy Installation — DigiTOOLS® rack mountable fan–less enclosure enables side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
