Kramer 8−Channel HDMI & RS−232 over DGKat Output Card (F-64)
#Grup produk P107869199
Spesifikasi
| Output | 8 HDMI 8 RS-232 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

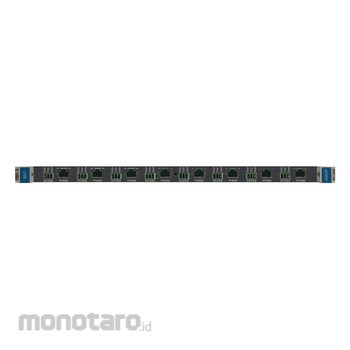

DGKat−OUT8−F64 is an eight−channel HDMI and RS−232 over DGKat twisted pair output card for the VS−6464 Series Modular Multi−Format Digital Matrix Switchers. The DGKat−OUT8−F64 outputs eight HDMI and RS−232 signals from the chassis.
Fitur
Max. Data Rate — 4.95Gbps.System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
HDMI and HDCP Compliant.
DGKat™ Signal Integration.
3D Pass–Through.
Bidirectional Local RS–232 Port.
Kramer Equalization & re–Klocking Technology.
Power Connect System — For supplying power to compatible TP receivers.
