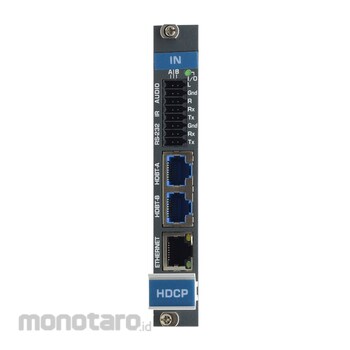

Kramer 2−Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Input Card
#Grup produk P107868215
Spesifikasi
| Input | 2 HDBT 2 Stereo (U) Ports |
|---|---|
| Product Dimensions (WxDxH) (cm) | 19x13x2 |
| Humidity (%) | 10to90,RHL non-condensing |
| Bandwith Total Serial Data | 115200 |
| Bandwidth Per Channel Serial Data | 115200 |
| Bandwidth Per Channel Video | 3.4Gbps |
| Bandwith Total Video | 10.2Gbps |
| Extended Rs-232 Baud Rate | 300 to 115200 |
| Operating Temperature (°C) | 0to+40 |
| Ports Ethernet | 1 on an RJ-45 connector for bidirectional Ethernet extension |
| Ports IR | 2 on a 10 pin terminal block for IR extension |
| Ports RS-232 | 2 on a 10 pin terminal block for bidirectional RS-232 |
| Power Consumption (W) | 17 |
| Shipping Dimensions (cm) | 24.20x16.80x6 |
| Standards Compliance | HDCP 1.4, HDMI 1.3a, HDBaseT |
| Storage Temperature (°C) | -40to+70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
DTAxr−IN2−F16 is a 2−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. DTAxr−IN2−F16 inputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.
Fitur
Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel).Max. Resolution — 4K@60Hz (4:2:0).
Analog Audio Embedding/De–embedding — On the same jack
HDBaseT Technology — HDTV compatible, HDCP compliant.
System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
3D Pass–Through.
