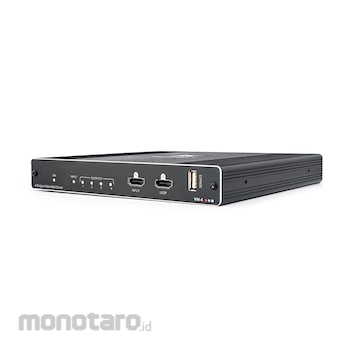

Kramer 4 Output Video Wall Driver

Scalable Video Walls — Create and manage a video wall of up to 4 displays or, by adding devices, create video walls of up to 64 displays.

Quick, Basic, Local Setup — Use front panel DIP–switches for basic setup of video walls up to 16 displays.

Full Feature Configuration — Use the VW–4 app via Ethernet or RS–232 to set up video walls of up to 8x8 displays. Also use the app for the following: bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID.

Content Protection — Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs. HDCP can be disabled on the input.

EDID Support — Upload EDID files, copy any output EDID to the input, and select from several built–in EDID files.

Reliable Video — Features constant output sync and auto–sync off option that stops or delays the 5V shutoff when no input is detected.

Auto Display Powering — CEC capabilities turn ON or OFF the connected displays according to the status of the input video.

Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
