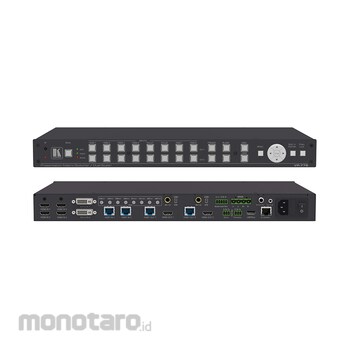

Kramer 8−Input Presentation Matrix Switcher/Scaler

Pix Perfect™ Scaling — State–of–the–art Kramer technology.

K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra–stable picture–in–picture, picture–and–picture and split–screen.

Seamless Video Switching — Swap or follow (transition type) and cut or fade (transition effect).

Dual Scalers — “Live” seamless transitions with two independent outputs.

8 Input Buttons per Channel.

Main and PiP Window Customization — In overlay mode.

Projection Setups — Front, back, ceiling front and ceiling back.

Output Resolutions — Up to 4K@30Hz UHD (3840x2160) in single–window mode, HDTV and computer graphics resolutions with selectable refresh rates.

Inputs — Choice of HDMI, VGA, YUV, or CV on two DVI–U inputs, 4 HDMI and 2 HDBaseT inputs.

Two Programmable User Buttons — For passing serial commands.

Serial Comms Matrix — Up to eight sets of configurable unidirectional connections for passing serial data from source to destination.

HDBaseT™ Technology — Max. data rate of 6.75Gbps (2.25Gbps per graphic channel).

System Range (HDBaseT™) — Up to 130m (430ft) in normal mode; up to 180m (590ft) in ultra–mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.

Cables — For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP–778.

Audio — Balanced stereo audio inputs, two microphone inputs, digital stereo and balanced stereo outputs, input/output audio level adjustment, and audio DSP.

Built–in 2x10W Power Amplifier — Speaker outputs on a 4–pin terminal block connector.

Microphone — Talkover or mix modes.

Auto Switching — Automatically scans inputs based on a predefined priority and selects first live input found or last connected.

Audio–Follow–Video (AFV) & Breakaway.

Advanced De–interlacing — 3D comb filtering, film mode, diagonal correction, and motion detection.

Multiple Aspect Ratio Selections.

Built–in Proc–Amp — With enhanced functions such as color correction, gamma, dither, and noise reduction.

Power Management Modes — Save energy and money.

HDCP Compliance.

Luma — and Chroma–Keying.

Advanced EDID Management — Native resolution and color depth modeline per input.

Built–in Test Patterns — For screen setup and alignment.

Output EDID Analysis — For optimal scaling.

Input & Output Color Space Control.

HDMI Deep Color.

On–Screen Display (OSD) — Provides easy setup and adjustment.

Non–Volatile Memory — Retains settings.

Firmware Upgrade Input — Via USB memory stick.

Various Control Options — Front panel buttons, Ethernet web page, RS–485, IR, RS–232 serial commands transmitted by a touch screen system, PC, or other serial controller.
