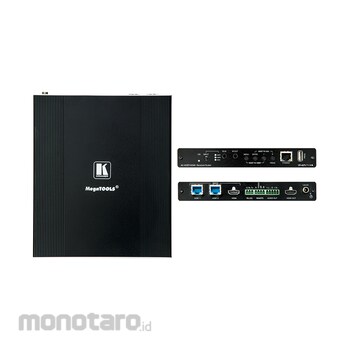

Kramer 4K HDR HDBT Receiver / Scaler Tool with HDBaseT and HDMI Inputs
#Grup produk P107865999
Spesifikasi
| Compliance | HDMI 2.0 and HDCP 2.3 |
|---|---|
| Frequency Response (Hz) | 20 — 20k @ +/–0.3dB |
| Humidity | 10% to 90%, RHL non–condensing |
| Impedance | 500Ω |
| Inputs | 4 HDMI: On a Female HDMI Connector |
| Maximum Bandwidth (Gbps) | 18 (6 per graphic channel) |
| Operating Temperature (°C) | 0 to +40 |
| Operating Temperature (°F) | 32 to 104 |
| Outputs | 1 HDMI: On a Female HDMI Connector, 1 HDBT: On an RJ–45 Connector, 1 Balanced Stereo Audio: On a 5–pin terminal block |
| Power Consumption | 12V DC, 1.9A |
| S/N Ratio (dB) | >–88dB, 20Hz — 20kHz, at unity gain |
| Source | 12V DC, 5A |
| Storage Temperature (°C) | -40 to +70 |
| Storage Temperature (°F) | -40 to 158 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
VP−427X2 is a high−performance auto−switcher/scaler receiver with 2 HDBaseT inputs and a local HDMI input for 4K HDMI™ over extended−reach HDBaseT. It supports automatic and manual glitch−free switching between the 3 inputs, and up− or down−scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output, or it can be manually set by the user. VP−427X2 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Fitur
Comprehensive Receiver/Scaler — Scales signals of all standard resolutions up to 4K@60Hz (4:4:4) for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.HDMI Signal Extension — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
Audio De–embedding — Analog balanced stereo output for de–embedding the audio to speakers.
Data Tunneling — Extend RS–232, IR, and Ethernet over the HDBaseT line.
Built–in Automated Control — Includes easy connection to occupancy sensors and contact closure switches.
CEC Support — Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
Cost–Effective and Convenient Control Options — Ethernet and RS–232 serial ports, and local control via front panel input selection and OSD menu buttons.
ProcAmp Control — Contrast, brightness, color, etc.
Convenient Unit Control and Configuration Options — Local control via front panel source switching buttons and OSD menu. Distance control via RS–232 serial commands transmitted by a PC, touch screen system or other serial controllers.
Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.
Easy and Elegant Installation — Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
