Kramer 12−button Ethernet and KNET Control Keypad
#Grup produk P107863779
Spesifikasi
| Input | 12 Buttons 1 Knob |
|---|---|
| Output | 2 IR 4 Relay 2 GPI/O |
| Product Dimensions (WxDxH) (cm) | 16.20x2.30x11.43 |
| Shipping Dimensions (cm) | 35.10x21.20x7.20 |
| Voltage (V) | 12DC |
| Current Comsumption (mA) | 570 |
| Included Accessories | Power supply, mud ring, label set, screwdriver |
| Ports Ethernet | 1 On an RJ-45 connector |
| Ports GPI/O | 2 on terminal block connectors |
| Ports Infrared Sensor | 1 infrared sensor |
| Ports K-NET | 2 on terminal block connectors |
| Ports Mini USB | 1 mini USB for programming |
| Ports RS-232 | 3 on terminal block connectors, 1 Ethernet on an RJ-45 connector, 1 infrared sensor , 1 mini USB for programming |
| Ports RS-485 | 1 on terminal block connectors |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

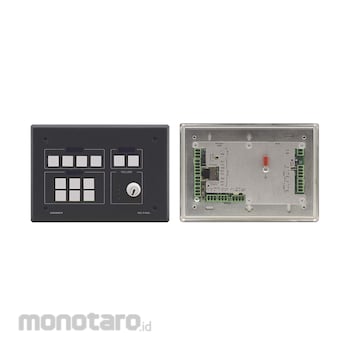

The RC−74DL is a 12−button control keypad, with knob and LCD displays. It is a versatile device that connects to powerful control tools: over Ethernet it connects to Kramer's Site−CTRL™, a remote AV control, site management & monitoring system. For extended controlled device capacity it connects to LAN−connected control gateways. For remote keypad control it connects via KNET™ to master room controllers and auxiliary keypads. It flexibly serves either as a standalone room controller, part of multi−units KNET™ system, or part of multi−unit Ethernet system managed by Kramer Site−CTRL™ site management platform. The RC−74DL is ideal for auditoriums and meeting rooms, for convenient control of their complex multimedia systems and other room facilities such as screens, lighting and shades.
Fitur
Back Lit & Label Capable Buttons — 12 RGB–color, tactile feedback, backlit buttons. Buttons are grouped in 3 groups, each with it group LCD display.Custom Labeled, Removable Button Caps.
Volume Control Knob with LEDs — Bi–directional rotary dialed digital knob for volume control, with 5 LEDs bar for visual volume level feedback.
LCD Displays — 3 blue–color and 8 white–characters LCD displays, in 3 button groups, for programmed visual feedback indication and group configured labeling.
2 K–NET™ Connectors — Connect to master room controller, and auxiliary keypads for remote keypad control.
K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control communication information.
1 RS–485 Bi–directional Control Port — Control devices via RS–485 control protocols.
3 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.
2 IR Emitter Control Ports — Control a device via IR control protocols.
2 GPI/O Control Ports — Control a device via general purpose I/O ports, program–configured as digital input, digital output or analog input interface for controlling sensors, door–locks, audio volume and light dimming level, or lighting control devices.
4 Relay Control Ports — Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
IR Sensor Port — Learns commands from IR remotes.
Program Control — Program configuration with Kramer K–Config software.
Kramer Site–CTRL™ Compatibility — For network management and remote control over the Ethernet port.
Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.
Mini USB Port — For uploading configuration files, setting the K–NET™ ID number, and powering the device during configuration.
Mounting — In–wall, in standard 3 gang US wall junction boxes.
Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.
