Kramer 3G HD-SDI Multiviewer
#Grup produk P107862895
Spesifikasi
| Input | 6 3G HD-SDI |
|---|---|
| Output | 1 3G HD-SDI 1 HDMI 1 CV |
| Product Dimensions (WxDxH) (cm) | 19x7.24x2U |
| Humidity (%) | 10to90,RHL non-condensing |
| Frequency (Hz) | 50/60 |
| Included Accessories | Power cord, rack ears |
| Operating Temperature (°C) | 0to+40 |
| Shipping Dimensions (cm) | 55.00x29.40x16.10 |
| Storage Temperature (°C) | -40to+70 |
| Voltage (V) | Universal100240AC |
| Voltage (VA) | 35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

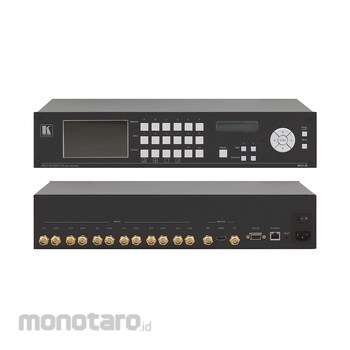

The MV−6 is a versatile, high−performance multiviewer for 3G HD−SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre−programmed and customizable screen divisions are supported. The MV−6−MD is certified for medical applications.
Fitur
Max. Data Rate — 3Gbps.HDTV Compatible.
Standards Compliance — Certified for medical applications according to IEC 60601–1–2 (Electromagnetic Compatibility).
Kramer re–Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
Re–Clocking Looping Inputs.
Multi–Video Output Formats — 3G HD–SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
Front Panel Preview Screen — 16:9 4.3in color LCD displaying the output of the unit.
Text Overlay — A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings.
Screen Handling Buttons — Freeze, size, position, and 4 pre–programmed and 2 user–definable layouts.
Flexible Control Options — Front panel with 2–row LCD, OSD, Ethernet & RS–232 (supplied with PC control software).
Worldwide Power Supply — 100–240V AC.
Medically Certified Version — Contact your local Kramer representative for details.
