Kramer Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Fiber Optic
#Grup produk P107862497
Spesifikasi
| Input | 1 HDMI 4K60 4:4:4 1 DP 1 IR |
|---|---|
| Output | 1 HDMI 1 IR Ports: |
| Product Dimensions (WxDxH) (cm) | 20.00x23.10x2.50 |
| Video Standards Compliance | 10/12bit HDR (PointtoPoint and Genlock mode only), HDCP 2.2 &1.4, DVI 1.0, |
| Accessories Included | Power adapter, multimode SFP+ transceiver module, rubber feet Optional:Singlemode SFP+ transceiver module |
| Shipping Dimensions (cm) | 38.20x20x7 |
| Current Comsumption (A) | 1 |
| Extension Line Maximum Range in Point–To–Point Mode | Using OM3 multimode fiber 300m (980ft) / Using OM4 multimode fiber 550m (1800ft) / Using singlemode fiber 30km (18.6 miles) |
| Extension Line Signal Compression | Ultralight compression, lossless for most content |
| Ports 1GbE Ethernet | 1 On an R-J45 connector |
| Ports RS-232 | 1 On a 3-pin terminal block connector |
| Ports SFP+ Fiber | 1 On LC connector(s) for 10GbE Ethernet (MM SFP+ transceiver module included) |
| Ports USB | 3 On female USB type-A connectors |
| Ports Unbalanced Stereo Audio | 1 On a 3.5mm mini jack |
| Voltage (V) | 12DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

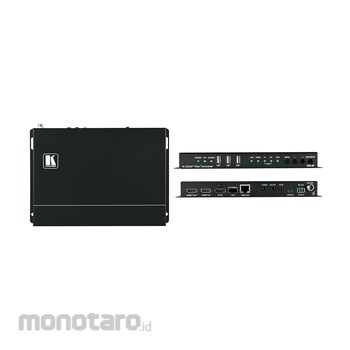

KDS−8F is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over single−mode and multi−mode optical fiber. KDS−8F can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI or DisplayPort input along with IR, RS−232, analog audio and USB, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Fitur
High–Performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support.
High–Speed 10G Network Switch — Managed switch provides multicast, jumbo frames, IGMP snooping and fast leave.
Analog Audio Embedding — Provides an unbalanced analog audio port for embedding audio into the streaming signal.
Bi–directional USB over IP.
Bi–directional IR and RS–232 over IP — Control an IR or serial device located on the decoder side from the encoder and vice versa.
Video Wall Support.
Multiview Support.
Easy, Cost–Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI/ DisplayPort video source detection, USB connection and Tx and Rx transmission enable easy local maintenance and troubleshooting.
Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.
