The float is designed to have a large buoyancy, so it is not affected by floating substances in the liquid or the viscosity of the measured liquid.
The detection signal is not affected by chattering caused by waves or flow because the float does not output unless the upper and lower limits are reversed.
The control width can be set arbitrarily. It can be easily done without using screws, bolts, etc

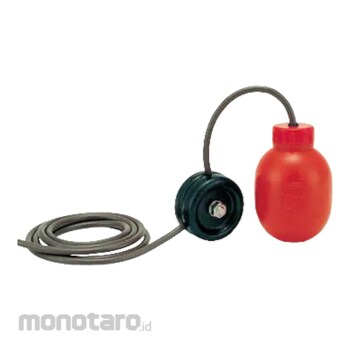

Noken Quick Float Type Level Sensor for Liquid FQ Type
#Grup produk P107849195
Spesifikasi
| Contact Capacity | (AC)50VA (DC)50W |
|---|---|
| Material | (Float) ABS, PP, (Cable) Soft PVC coating, (Weight) PVC, (Rope) PE, (Clip / Flange) PVC, (Terminal box) ABS |
| Operating Angle | (When ON at the upper limit) 35 degrees to 70 degrees, (When OFF at the lower limit) -30 degrees to -70 degrees *When the free cable length is 150 mm |
| Working Current (A) | 0.5 |
| Shock Resistance (m/s2) | 100 |
| Contact (mV/μA) | 10/10 |
| Applicable Voltage (V) | 300 |
| Buoyancy (N) (mm) | About 1.27 |
| Cable Length (m) | 6 |
| Drip-proof Structure | IP45 |
| Flange | JIS 10K 100A or equivalent (4 mounting holes) |
| Measurable Fluid | liquid |
| Operating Temperature (°C) | ‐10 to 50 |
| Outer Diameter x Length L (mm) | 70x107 (float) |
| Suitable Wire Diameter | G3 / 4 equivalent |
| Type | 4-point type |
| Withstand Pressure (kPa) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
Ideal for sewage, factory wastewater, and highly sticky liquidsUlasan Produk
