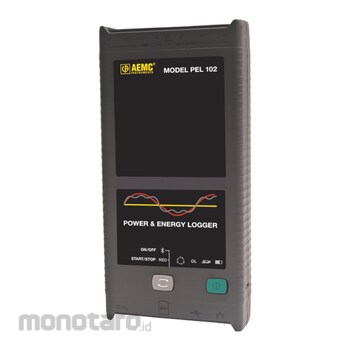

AEMC Power and Energy Logger
#Grup produk P107845728
Sebelum PPN:
Rp80.999.900 - Rp109.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Memory | 8GB SD card (SDHC compliant, FAT32 formatted) 32GB max |
|---|---|
| Case | Design Rugged, shock proof with integrated protective holster, IP54 not included terminals. Shock and vibration IEC61010 |
| Sample Rate (kHz) | 6.4 at 50Hz; 7.68 at 60Hz; 128 per Cycle |
| Measurement Range Volt (V) | 1000 P to N = 10 to 1000, 1000 P to P = 17 to 1700 |
| Altitude Operating (ft) | 6552 |
| AmpFLEX & MiniFlex (including sensor accuracy) (A) | Range 100 = 200mA to 120;Range 400 = 5 to 440;Range 2000 = 50 to 2400;Range 10000 = 400A to 12kA |
| Dimensions (LxWxH) (inch) | 10.08 x 4.92 x 1.46 |
| Electro-Magnetic-Compatibility (EMC) | EN 61326-1 for emission and immunity |
| IP Rating | IP54 per IEC 60529 |
| Interface | Isolated USB, Bluetooth, and Ethernet, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included |
| Operating Temperature (°C) | 0 to +42.5 from 10 to 85% RH |
| Power | AC 110V/230V 50/60Hz 15V A; Battery backup when power OFF, 60 minutes typical |
| Real Time Clock | Time and date stamp for Trend mode |
| Resolution Volt (V) | 1000 P to N = 0.1, 1000 P to P = 0.1 |
| Safety (V) | IEC/EN 61010-1 (1000 CAT III-600 CAT IV), IEC 1326-1 |
| Storage Temperature (°C) | -20 to +50 from 0 to 75% RH with battery pack |
