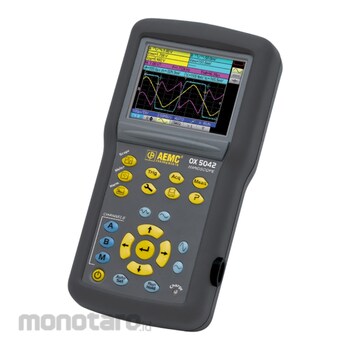

AEMC Handscope Portable Oscilloscope Kit
#Grup produk P107845700
Sebelum PPN:
Rp159.999.900 - Rp169.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Front Panel Control | 24 keys |
|---|---|
| Time Base Speed | 25 ns/div to 200 s/div. – accuracy 0.1-Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom | Zoom factor : x1, x2, x5 |
| Mode | On all channels: Auto, Triggered, One-shot & trigger Roll |
| Type | Edge, Pulse width (20 ns to 20 s) |
| Coupling | AC or DC (dependent of the coupling of the triggering channel)- HF, LF, or noise rejection |
| Display Mode | 2500 real acquisition points on screen |
| Display Modes | Envelope, Averaging (factors 2 to 64) and XY (vector) |
| GLITCH Mode | Duration ≥ 20 ns – 1,250 MIN Max pairs |
| Input Impedance (ohm) | 1 M ± 0.5 %, 17 pF |
| Inputs / Bandwidth (V) | 2 X 600 Isolated channels / 40 MHz |
| Math Functions | Channel inversion,, +, -, x, / and (adjustable scaling) |
| Max. Sampling Rate | 2 GS/s in ETS – 50 MS/s in Single Shot Mode on each channel (9 bits) |
| Maximum Input Voltage (V) | 600 rms CAT III – Derating -20 dB per decade from 100 kHz |
| Memory Capacity | 2 MB for storing various types files: trace, text, configuration, image files |
| Memory Depth | 2500 points/channel |
| Screen Specifications | Color 3.5 in TFT LCD 320 x 240 – LED Backlighting |
| Sensitivity | ≤ 1.2 divisions p-p up to 40 MHz |
| Traces On Screen | 2 Traces + 2 References + memory trace or Math calculation |
| Vertical Sensitivity | 5 mV to 200 V/div and up to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1 % |
