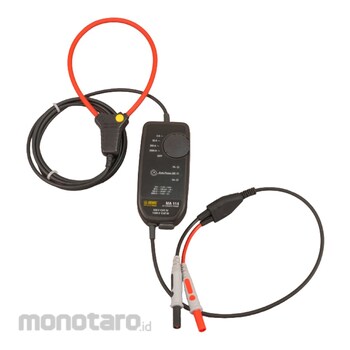

AEMC MiniFlex AC Current Sensor
#Grup produk P107845588
Spesifikasi
| Maximum Conductor Size (inch) | 4 |
|---|---|
| Dimensions (HxWxD) (inch) | Module: 4.72 x 2.28 x 1.42 |
| Pollution Degree | 2 |
| Phase at 50Hz/60Hz | ≤1.5° |
| Accuracy (%) | ±(1 + 40mV) |
| Battery Indicator | yes |
| Battery Life | 300 hours typical, 1,800 10 minutes test |
| Battery Type | 2 x 1.5 V AA/LR6 batteries |
| Cable Length Module to Sensor (ft) | 6 |
| Current Range (A) | 3, 30, 300, and 3000rms AC |
| External Power (V) | 5 DC, 100 mA with a type B micro-USB conector. |
| Frequency Range (Hz) | 10 to 10000 on the 3000 A range and 10 to 20000 on the 3 A, 30A and 300 A ranges |
| Ingress Protection (IP) | Case IP54, Sensor IP67 |
| Measurement Range (A) | 0.5 to 3000 |
| Operating Humidity (%RH) | 80 up to 50℉ (122℃) |
| Operating Temperature (°C) | -10 to +55 |
| Output Cable (inch) | 19.7 (0.5m) leads with 4 mm safety banana plug Black and Red |
| Output Signal (mV/A) | 1000, 100, 10, and 1 |
| Sensor | The flexible sensor can withhold a temperature of 194℉ (90℃) and is resistant to oil and Aliphatic hydrocarbons |
| Storage Temperature Without Battery (°C) | -40 to +80 |
