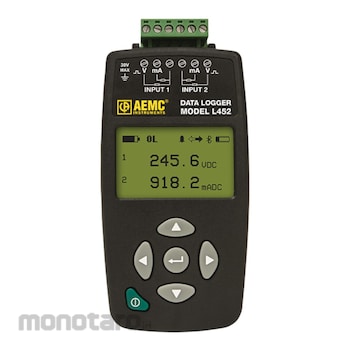

AEMC Data Logger
#Grup produk P107845560
Spesifikasi
| Dimensions (inch) | 4.92 x 2.60 x 1.30 |
|---|---|
| Ranges (mV) | 100/1000/10000, 4 to 20mA, Event & Pulse |
| Sample Rate Max | V & Current DC: 5 samples/s, Event 16 samples/s, Pulse 100 samples/s |
| Charger (Supply) | Rechargeable by main 110 to 240V 50/60Hz or via USB cable |
| Accuracy (%) | ± 100mV, ±1V, ±10V: ±(0.5% R +1ct) ; 4 to 20mA ±(0.25% R +5ct) |
| Battery Life (Display OFF) | 36 days @ 200ms sampling rate, 270 days @ 60s |
| Battery Life (Display ON) | 18 days @ 200ms sampling rate, 27 days @ 60s |
| Case | Polycarbonate |
| Channels | Two with LCD display |
| Communication | USB 2.0, Bluetooth 2.1 Class 1 (100m) |
| Input | 4mm safety banana jacks |
| Input Impedance (ohm) | V DC: 1000000, DC current: 100 Event: 1000000, Pulse N/A |
| Memory | 32MB recorded data is stored in non-volatile memory and will be retained even if battery is low or removed. |
| Operating Temperature (°C) | 0 to 50 |
| Power Source | 2x1.2V 400mAh NIMH |
| Recording Length | 15 minutes to 6 weeks, programmable using DataView |
| Resolution (mV) | Pulse: 3300 (with 1MΩ pull up resistor); Event: ± 10000 |
| Storage Modes | Start/Stop |
| Storage Rate | Programmable from 200 ms to 60 minutes |
| Storage Temperature (°C) | -20 to 65 |
