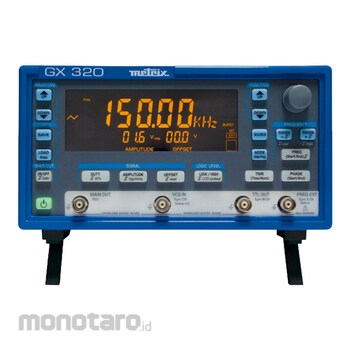

AEMC Function Generator
#Grup produk P107845524
Spesifikasi
| Display | Display of frequency on 5 digits 20mm high |
|---|---|
| Commands On Front Panel | digital encoder wheel |
| Adjustment Of Signal Parameters | increment digit (F, P, N…) |
| BNC Output Terminal | TTL, Sweep, Clock and Synch outputs |
| BNC Input Terminal | VCG, Gate, Clock and Synch outputs |
| Frequency | 0.001Hz to 20MHz (11 ranges) |
| Accuracy | ± 0.05% + 1ct |
| Amplitude | 1V to 20Vpp |
| Burst Function | Internal/External |
| External Sweep | Sweep by signal <15kHz, amplitude ± 10V – VCF input impedance 10KΩ approx. |
| Gate Function | (GATE IN input) |
| Internal Sweep | \"Sawtooth\" or \"Triangle\" mode – sweep time adjustable from 10ms to 100s |
| Max Acceptable Voltage | 300V CAT I / 300VRMS |
| Measurement Range | 5Hz to 100MHz |
| Modes | LIN or LOG |
| Modulation | Internal / External AM/FM |
| Resolution Accuracy | < 10kHz, |
| Several GX320 In Cascade Arrangement | Adjustment phase ± 180° (Resolution 1°) |
| Shift Key Function | PSK (Internal/External) = phase switching ±180° |
| Volt DC Offset | ± 10VDC |
