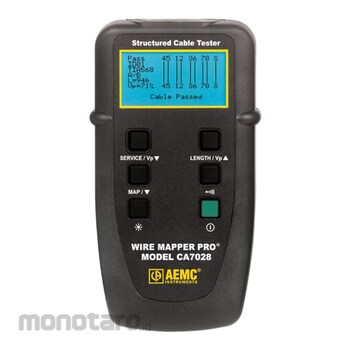

AEMC Wire Mapper Pro
#Grup produk P107845409
Spesifikasi
| Dimensions (inch) | Main Unit : 6.5x3.5x1.5; Remote (included) : 2.5x2.0x1.0 |
|---|---|
| EMC | EN 61326-1, EN 61000 Parts: 4-2, 4-3, 4-4, 4-6 |
| Range (ft) | 500 |
| Cable Type | UTP, STP, FTP, SSTP |
| Accuracy (%) | ±5 of Reading |
| Auto Power-off | After three minutes |
| Backlight | Blue electroluminescent |
| Fault Display | Fault and setting info displayed textually and graphically |
| Fault Location | Near end, remote end, or distance if midway |
| Faults Indicated | Short Circuit Pair; Open Circuit Wire; Short Between Pairs; Split/Cross Pairs; Pair Reversals; Shield Continuity |
| IP Rating | IP54 |
| Main Unit Display Resolution | 128x64 pixel graphical LCD |
| Operating Temperature (°C) | 0 to 44 |
| Output Impedance | Automatic compensation |
| Power Source | 4 x 1.5V AA alkaline batteries (included) |
| Safety Compliance | IEC 61010-1 |
| Storage Temperature (°C) | -20 to 70 |
| Tone Generator | Oscillating 810 to 1110Hz |
| Voltage Warning | Audible and visual warning of TNV (Telecom Network Voltage) |
