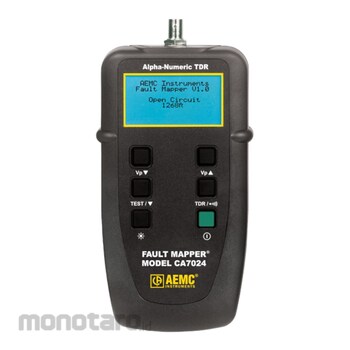

AEMC Fault Mapper
#Grup produk P107845366
Spesifikasi
| Dimensions (inch) | 6.5x3.5x1.5 |
|---|---|
| EMC | EN 61326-1 |
| Output Impedance | Automatic compensation |
| Backlight | Blue electroluminescent |
| Accuracy (%) | 2 ± of Reading |
| Auto Power-off | After three minutes |
| Cable Library | Built-in, user selectable and user programmable |
| Display Resolution | 128x64 pixel graphical LCD |
| Ingress Protection (IP) Rating | IP54 |
| Minimum Cable Length (ft) | 12 |
| Operating Temperature (°C) | 0 to 44 |
| Output Pulse | 5V (peak to peak) into open circuit, nanosecond rise Step Function |
| Power Source | 4 x 1.5V AA alkaline batteries (included) |
| Range (ft) | 6000 (at Vp=70%) |
| Resolution (ft) | 0.1 up to 100, then 1 (0.1m up to 100m, then 1m) |
| Storage Temperature (°C) | -20 to 70 |
| Tone Generator | Oscillating 810 to 1110Hz |
| Tone Receiver/Cable Tracer | Model TR03- Available as an accessory (not included) |
| Velocity of Propagation (Vp) | Adjustable from 0 to 99% |
| Voltage Warning (V) | Triggers at >10 AC/DC |
