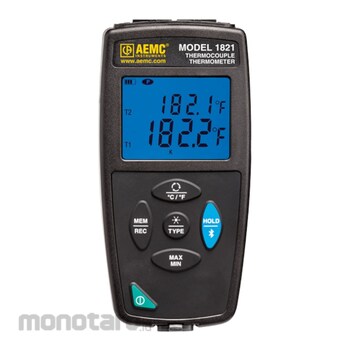

AEMC Thermocouple Digital Thermometer
#Grup produk P107845287
Spesifikasi
| Power Supply | 3x1.5V AA (LR6) alkaline batteries or USB port (micro-USB adaptor offered as an accessory) |
|---|---|
| Dimensions (mm) | 150x72x33 |
| Accuracy | Θ ≤-100°C · ± (0.2% of R + 0.6°C)-100°C < Θ ≤ +100°C · ± (0.15% of R +0.6°C)Θ ≥ +100°C · ± (0.1% of R +0.6°C) |
| Accuracy (J, K, N, T, E) | Θ ≤-100℃ · ± (0.2% of R + 0.6℃)-100℃ < Θ ≤ +100℃ · ± (0.15% of R +0.6℃)Θ ≥ +100℃ · ± (0.1% of R +0.6℃) |
| Accuracy (R, S) | Θ ≤ +100℃ · ± (0.15% of R + 1.0℃)Θ ≥ +100℃ · ± (0.1% of R + 1.0℃) |
| Alarms | Alarm thresholds set using the software. Visual alert on the product, recording can be triggered on alarm thresholds. |
| Battery Life | 1000 hrs., 3 years with 15 minute intervals |
| Case | Polycarbonate |
| Differential Measurement | Yes, T1 - T2 |
| Input | Two miniature thermocouple connectors |
| Measurement Range (Thermocouple Dependent) (°C) | J : 210 to +1200;K : -200 to +1372;T: -200 to +400;N : -200 to +1300;E: -150 to +950;R/S :0 to 1767 |
| Operating Temperature (°C) | -10 to 60 |
| Other Functions | MIN-MAX, Alarms |
| Recording | Manual start/stop on the product; Short press for MEM: spot recording/long press for REC at the defined default rate; Programmed recording: start date, recording interval, and end date defined using DataView® software |
| Relative Humidity (%RH) | Up to 85 at 95℉ (35℃) |
| Resolution | Θ < 1000° or ℃ · 0.1℉ or℃ Θ > 1000° or ℃ · 1℉ or℃ |
| Sampling Rate | Programable from 1s, 2s, 5s, 10s, 20s, 30s, 2min, 5min, 10min, 15min, 30min, and 1hr |
| Storage Temperature (°C) | -20 to 60 |
| Temperature Range (°C) | J : 210 to +1200;K : -200 to +1372;T: -200 to +400;N : -200 to +1300;E: -150 to +950;R/S :0 to 1767 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Thermocouple Thermometer Data Logger is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView software.
