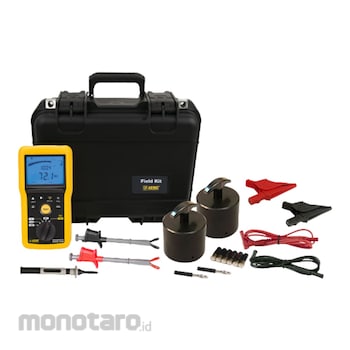

AEMC Electrostatic Discharge (ESD) Floor Test Kit
#Grup produk P107844969
Spesifikasi
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
|---|---|
| Programmable Alarm | Yes |
| AC/DC Voltage Range (V) | 0.3 to 700 |
| Resolution (V) | 1 to 99.9: 0.1; 100 to 999: 1; 1000 to 4000: 2 |
| Test Voltage / Resistance Range (V) | Variable 10 to 100 (1V steps);10: 2kΩ to 2GΩ;25: (Vtest/5)kΩ to (Vtest/5) GΩ;100: 20kΩ to 20GΩ |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| AC/DC Voltage Accuracy | ±(3% R + 2ct) |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Battery Life | ≥ 6000 IR tests at 100V into 100kΩ with a duty cycle of 5 seconds on and 1 min off;≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Continuity Accuracy | ± (2% R + 2ct) with lead compensation |
| Continuity Open Voltage (V) | ≥ 6 |
| Continuity Range (ohm) | 0.00 to 10 (200mA test current);0.0 to 100 (20mA test current) |
| Display | Backlit digital with bargraph |
| Frequency Range (Hz) | DC & 15.3 to 800 |
| Input Impedance (ohm) | 400000 |
| Measurement Accuracy | 2-999kΩ only: ±(4% + 20 ct) ;All other ranges: ±(3% + 2 ct)+(10%V) per 100MΩ |
| Resistance Accuracy | ± (3% R + 2ct) |
| Resistance Open Voltage (V) | Approximately 4.5 |
| Resistance Range (ohm) | 1 to 1000000 |
| Timer | 0:00 to 39:59mn, with 1s resolution |
