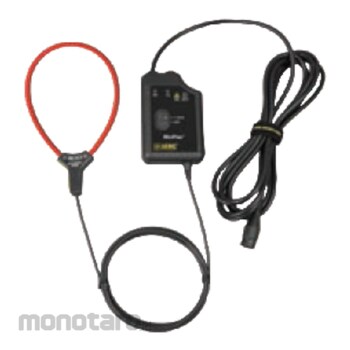

AEMC MiniFlex Oscilloscopes Current Probe
#Grup produk P107844668
Spesifikasi
| Nominal Range (A) | MN379T : 5 / 100; |
|---|---|
| Measurement Range (A) | MN379T : 0.005 to 6; 0.1 to 120; |
| Accuracy | MN379T : 1% of Reading @ 5A; 1% of Reading @ 100A; |
| Phase Shift | MN379T : ≤4° @ 5A / ≤2.2 @ 100A; |
| Overload (A) | 240A for 10 min ON, 30 min OFF |
| Frequency Range (Hz) | 40 to 10000 |
| Dimensions | 5.47 x 2.00 x 1.18 |
| Double Insulation | Yes |
| Jaw Opening (inch) | 0.83 |
| Limit Operating Conditions | 200A permanently to 1kHz; Derating above 3kHz: 200A x (1/0.333F), F in kHz |
| Maximum Conductor Size (inch) | 0.78 |
| Operating Relative Humidity | 10 to 35℃: 85% RH (without roll-off above 35℃ |
| Operating Temperature (°C) | -10 to 55 |
| Output Signal | MN379T : 200mV/Aac (1V @ 5A) & 10mV/Aac (1V @ 100A) |
| Output Termination | 10 ft (~3m) BNC Lead |
| Polycarbonate Material | Polycarbonate with fiberglass charge, UL94 V0 |
| Safety Rating | EN 61010-2-32 |
| Storage Temperature (°C) | -40 to 70 |
| Working/Common Mode Voltage | 600Vrms |
