Fieldpiece Digital Megohm Meter
#Grup produk P107843863
Spesifikasi
| Display | 3 1/2 digit liquid crystal display (LCD) with maximum reading of 1999 |
|---|---|
| Over Range | (OL) or (-OL) is displayed |
| Low Battery Indication | The \" \" is displayed when the battery voltage drops below the operating level |
| Measurement Rate | 2.5 times per second, nominal |
| Operating Humidity (%RH) | < 70 |
| Auto Power-off | 15 seconds approx |
| Battery | 4 pcs 1.5V (AAA size) UM-4 R03 |
| Battery Life | 4 hours (continuity) typical with alkaline battery (@20ΜΩ range test 10ΜΩ resistor |
| Operating Temperature (°C) | 0 to 40 |
| Standby consume current | <10µA |
| Storage Humidity (%RH) | 0 to 80 with battery removed from meter |
| Storage Temperature (°C) | -20 to 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

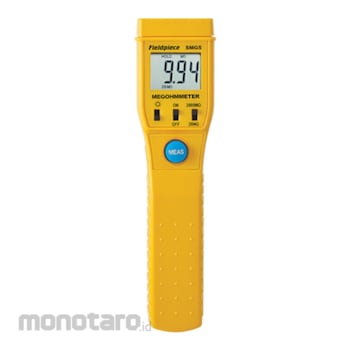

SMG5 – Digital Megohm Meter Evaluate Compressor Insulation. Helps to Predict Compressor Failure. 1000VDC voltage sourceMeasure up to 2000 megohmBacklit LCDThe Fieldpiece Digital Megohm Meter, model SMG5, is a compact standalone meter designed for checking HVAC compressor insulation. The SMG5 provides a 1000V voltage source, monitors current, and displays the resistance between the test points. Maximum current output is <1mA. It can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer. Includes a case, alligator clip lead tip and leads with removable tips.To test resistance, a DMM supplies low voltage (<1V) to the test points and is capable of delivering only a few milliamps. It’s not a high enough voltage to detect high resistance problems that might indicate moisture and other contaminants and it’s not enough current to measure lower values of resistance.1000VDC stresses insulation to measure up to 2000MohmsBacklit LCD displayAuto-off to extend battery lifeCase, alligator clip, leads with removable tipsIncludes:Megohm Meter – SMG5(2) Probe Tips(1) Ground Lead with Detachable Tip(1) Alligator Probe TipCarrying Case(4) AAA Batteries (installed)Operator’s Manual
