JL3PR – Job Link® System Pressure Probe Gets the pressure just about anywhere. Powerful 1000′ wireless range w/no transmitter required45° angled fitting easily connects in tight spacesPressure sensors are accurate at any elevationField replaceable gasketGreat for critically charged systemsWater resistantEasily access service ports at odd angles and/or tight spaces with the Job Link® System Pressure Probes. Pressure sensors are accurate at any elevation so your readings are spot on no matter your location.45° angled fitting easily connects in tight spacesPressure sensors are accurate at any elevationCalibrates automatically to barometric pressureFast-Hands-Free MeasurementsQuickly connect onto suction and liquid line pressures for instant measurements. Monitor pressures up to 1000’ away.Connect Directly to Job Link® SystemSend measurements directly to your mobile device with the Job Link® System App.Low Refrigerant Loss DesignA direct connect to service port means no need for hoses so there is little to no refrigerant loss. Excellent for servicing critically charged systems.Switchable Suction/Liquid IndicatorThe indicator switch automatically tells the Job Link® system which side you’re testing. Select red for liquid side and blue for suction side.Probes are sold as individuals on it kits: Job Link® System Probes Charge Kit, or Job Link® System Charge and Air Kit.
Includes:
' - Job Link Pressure Probe
- 2 x Replacement Gaskets
- 2 x AAA Batteries

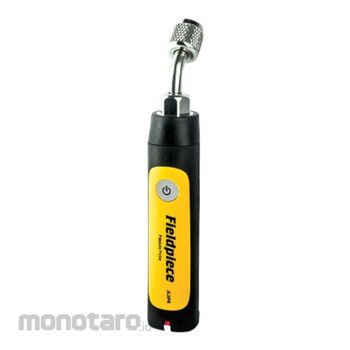

Fieldpiece Job Link System Pressure Probe
#Grup produk P107843526
Spesifikasi
| Minimum Device Requirement | BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 |
|---|---|
| Sensor Type | Relative pressure |
| Connector Type | Standard 1/4″ NPT female flare fitting (angled) |
| Measurement Range | 29\" HgV to 580 psig, 74 cmHgV to 0 to 4000 kPa |
| Accuracy | 29\" HgV to 0\" HgV: ±0.2\" HgV; 74 cmHgV to 0 cmHgV: ±1 cmHgV, 0 to 200 psig: ±1 psig; 0 to 1378 kPa: ±7 kPa, 200 to 580 psig: ±2 psig; 1378 to 4000 kPa: ±14 kPa |
| Maximum Overload Pressure (psig) | 800 (5500 kPa) |
| Auto Power-off | 2 hours (APO can be disabled) |
| Battery Life | 150 hours typical alkaline. LED blinks red when battery replacement is needed |
| Battery Type | 2 x AAA, NEDA 24A, IEC LR03 |
| Operating Humidity (%RH) | <75 |
| Operating Temperature (°C) | 0 to 50 |
| Radio Frequency ( GHz) | 2.4 |
| Storage Humidity (%RH) | 0 to 80 (with batteries removed) |
| Storage Temperature (°C) | -20 to 60 |
| Temperature Coefficient (°C) | 0.1 x (specified accuracy), per 1(0 to 18, 28 to 50) |
| Water Resistant | Designed to IP55 |
| Wireless Range (ft) | 1000 (305 meters) line of sight. Obstructions affect distance |
