Fieldpiece Manometer Single Port Wireless
#Grup produk P107843483
Spesifikasi
| Minimum Device Requirement | BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 |
|---|---|
| Compatible Media | Dry, non-corrosive gas |
| Pressure Port | Tube connector for flexible tubing (4.5 to 8mm ID) |
| Units of Measure | inWC, mmWC, mbar, psi, Pa |
| Accuracy (%) | inWC: ±0.02 (±1.5% FS); mmWC: ±0.5 (±1.5% FS); mbar: ±0.05 (±1.5% FS); psi: ±0.001 (±1.5% FS); Pa: ±5 (±1.5% FS) |
| Range | inWC: 0.00 to ±2.00 (2.00 to ±60.00); mmWC: 0.0 to ±51.0 (51.0 to ±1500.0); mbar: 0.00 to ±5.00 ( 5.00 to ±150.00); psi: 0.000 to ±0.072 (0.072 to ±2.165); Pa: 0 to 498 ( 498 to ±14930) |
| Auto Power-off | 2 hours (APO can be disabled) |
| Battery Life | 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed |
| Battery Type | 2 x AAA, NEDA 24A, IEC LR03 |
| Maximum Overload Pressure (psi/kPa) | 321.08 inWC (11.6; 80.0) |
| Operating Humidity (%RH) | <75 |
| Operating Temperature (°C) | -23 to 50 |
| Radio Frequency ( GHz) | 2.4 |
| Storage Humidity (%RH) | <80 (with batteries removed) |
| Storage Temperature (°C) | -23 to 60 |
| Temperature Coefficient (°C) | 0.1 x (specified accuracy), per 1 (-23 to 18, 28 to 50) |
| Wireless Range (ft) | 1000 line of sight – obstructions affect distance |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

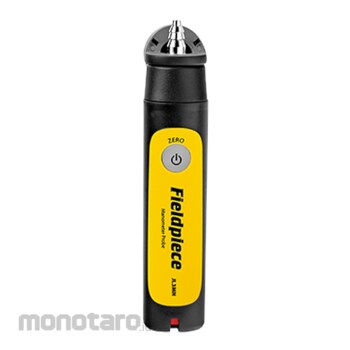

JL3MN – Manometer – Single Port Wireless Shorter hoses. Fewer tangles. You’re free to work the way you want. 1,000’ Wireless rangePrecise placement with more convenient, shorter hosesAll-in-one static, gas and draft pressureRecord up to eight readings at once in Job Link AppTotally untethered.Part of the Job Link® System, the JL3MN Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work. Versatile and durable.With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate and durable measurement tool. It’s great for taking a single gas pressure measurement and works wirelessly with the Job Link App.What’s Included:(1) JL3MN Manometer Probe (1) ASP2 Static Pressure Probe and Hose (1) Brass Screw Fitting with Extra Hose(1) Slide Gas Adapter(2) AAA Batteries
