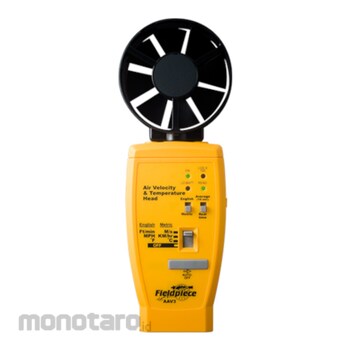

AAV3 – Air Velocity and Temperature Accessory Head. Easy to Use Vane Anemometer. Air Velocity and Temperature. Estimate CFM. Large vane covers most of register’s free area. Displays average measurement and real-time. The AAV3 is an anemometer accessory head for use with our modular instruments that measures air velocity and temperature in English or Metric units: Ft/min, M/s, MPH, KM/hr, ℉ (degrees Fahrenheit) or ℃ (degrees Celsius). Multiply your air velocity by the register’s free area to estimate CFM or diagnose duct blockages and quickly check the airflow balance in a conditioned space. Use with our DL3 Data Logger to track airflow or temperature over time. Features average and real time testing modes.
Includes:
-Air Velocity and Temperature Accessory
– AAV3-9V Alkaline Battery (installed)
-Operator’s Manual.
Fieldpiece Air Velocity and Temperature Accesory Head
#Grup produk P107843243
Spesifikasi
| Range Wind Velocity (ft/minute) | 60-5900 |
|---|---|
| Range Wind Velocity (mph) | 0.7-67.0 |
| Range Wind Velocity (km/hour) | 1-108 |
| Accuracy Wind Velocity (%) | ±3+ 1digit @73℉ ±5℉ (23℃±2℃), <95 relative humidity |
| Auto Off | Approx. 10 minutes |
| Battery (V) | 9 |
| Battery Life | 200 hours typical. No measurable current draw when in \"off\" position |
| Low battery indicator | Red LED |
| Operating Humidity (%RH) | <95 |
| Operating Temperature (°C) | 0-49 |
| Resolution (°F/°C) | ±0.1 |
| Sensor Type | Thermistor temperature sensor |
| Storage Humadity (% R.H) | 0 to 80 with battery removed from meter |
| Storage Temperature (°C) | -20 to 60 |
| Temperature Accuracy (°C) | (±0.5℃ at 0ºC to 45℃, ±1℃ at -20℃ to 0℃, 45℃ to 60℃) |
| Temperature Range (°C) | -20℃ to 60℃ |
| Wind Velocity Range (m/s) | 0.3-30.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Works with any Fieldpiece expandable instrument or handle or any DMM with mVDC ranges and our detachable leads.- Measures air velocity and measures air temperature.
- Measure in hard to reach areas using detachable test leads.
- Display readings smoothly in average mode or switch to real-time measurement.
- Low battery indicator.
- Auto-power off after 10 minutes (may be disabled).
