Oval Flowpet 5G
#Grup produk P107824345
Sebelum PPN:
Rp45.999.900 - Rp61.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (%) | ±0.5 of RD |
|---|---|
| Battery Life | 8 years (varies with operating conditions) |
| Battery Voltage (V) | 3.6 |
| Display Item | Total flow, instantaneous flow rate ([/h] or [/min]), and resettable total flow |
| LCD Display | 7-segment, 8-digit with 14mm characters, unit display, low battery alarm, and flow indicator (10-segment) |
| Maximum Operating Pressure (MPa) | 1.18 (Flange rating: JIS 10K RF) |
| Power Source | Lithium battery or External power source: 12 to 50VDC±10% (Pulse output: Current capacity 10mA or more, Analog output: Current capacity 30mA or more |
| Storage Life | 10 years |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

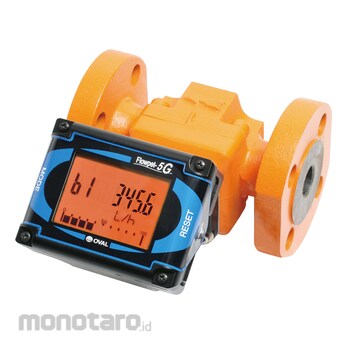

FLOWPET-5G is an OVAL flowmeter primarily intended for use in boiler feed water and fuel oil metering applications. Field proven accuracy and long life along with the best price/ performance and ease of use make this industrial meter ideal as a dedicated tool for heat control.
Feature
1. Available in two product families - for water service and fuel oil service.2. Newly designed electronic register shows total flow and instantaneous flow on a digital LCD at the touch of mode select switch. The display angle can be adjusted for better visibility (Adjustable range: 75 degrees upward, 75 degrees downward).
3. The electronic register equipped models have an internal battery (good for 8 years); eliminates the need for an external power source. (Operation on external power source is recommended for the pulse output models.)
4. Improved display capabilities compared to the previous EG register.
5. Factored pulse width is variable in 1ms steps with the frontpanel buttons (adjustable 1 to 999ms).
6. Simulated outputs available. (Pulse generator furnished meter only) Pulse and analog output can be simulated at any flow rate for loop tests.
7. Reliable engineering-unit pulses for total flow and fast pulse output are available.
8. Analog output available (2-wire, 4 to 20mA)
Use
Oil Feed/Water FeedUlasan Produk
