Suitable Applications :
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

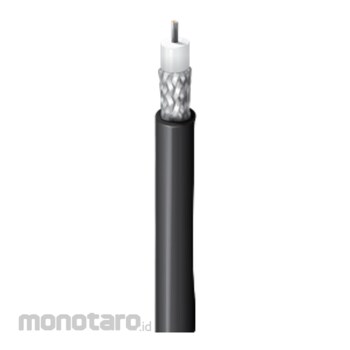

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG (19x32) Tinned Copper Conductor , PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket, CM
BELDEN Cables
#Grup produk P107802796
Spesifikasi
| Size (Conductor) (AWG) | 20 |
|---|---|
| Stranding (Conductor) | 19x32 |
| Nom. Diameter (Conductor) (in) | 0.037 |
| Material (Insulation) | PE-Polyethylene (Foam) |
| Non. Insulation Diameter (Insulation) (mm) | 2.95 |
| Conductor Material | TC-Tinned Copper |
| Installation Min. (Band Radius) (in) | 1.9 |
| Material (Outer Jacket) | PVC - Polyvinyl Chloride |
| Maximum Pull Tension (lbs) | 50 (23 kg) |
| Nom. Diameter (Outer Chloride) (mm) | 4.9 |
| Operating Temperature (°C) | -30 to +75 |
| UL Temperature (°C) | 80 |
| Ul Voltage Ranting (V) | 300 (CM), 30 (UL AWM 1354) |
