317 Cylinder Control Valve

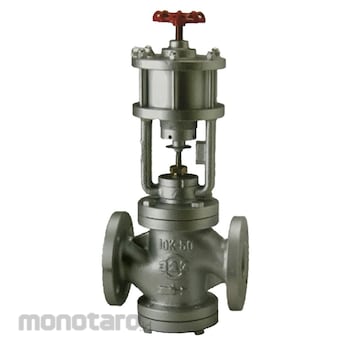

Deskripsi CYLINDER CONTROL VALVE 317 MODEL CV-CYD 3" 10K-80
CYLINDER CONTROL VALVE CV-CYD
CYLINDER CONTROL VALVE 317
Type Cylinder Type Specification
Body
• Single Seated, direct or reverse type, globe valve.
3-way diverting or mixing type.
• Valve Guide: Top-Bottom guide or Top guide.
• Packing: V-Teflon, Asbestos yarn or Carbon Graphite.
• Bonnet: Plain bonnet (0-200°C) Radiator finned bonnet
(200°C up)
Trim Plug form in Teflon seat plug for on-off service.
Actuator
• Spring return cylinder actuated, direct or reverse.
• Double action cylinder actuated.
• Cylinder material: Aluminum Alloy, Anodized.
• Pneumatic tubing connection: 1/4" female tap.
• Ambient Temperature: -20°C ~ 60°C.
Valve Action Air to open or air to close by using direct or reverse
actuator.
Accessory Hand wheel, Positioner (Liner type & Rotary type). Limit
Switch. Air set & Lubricator.
Performance Leakage of full closure: Class VI
Working Fluid Steam, Water, Air, Oil and others Non-Corrosive fluids.
Supply Air
Pressure 3 ~ 5 kgf/cm². (Air)
Connection Flanged End to JIS 10K.
Remark UP 4" with double acting cylinder actuator
