Intuitive Turbidity or Suspend Solid controller and transmitter in a 1/4 DIN IP-65 case with 2 on/off control relays,one 4-20mA output, a RS-485 modbus output
- 1/4 DIN watertight, IP65 rated enclosure
- Reversible & isolated 4 to 20 mA output with adjustable bandwidth
- Power down, non-volatile memory backup
- Multiple spot on/off relays
- 1 to 5 point calibration
- Graphical LCD display with backlight
- Electrode self-cleaning function
- Embedded self diagnostic program
- RS-485 Modbus output
- 4-digit password security protection
- High 50/60 Hz noise rejection
- CE compliant

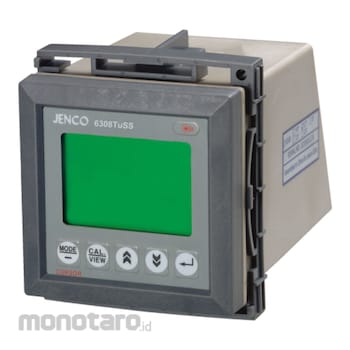

JENCO Industrial Inline Turbidity/Suspend Solid Analyzer
#Grup produk P107779346
Spesifikasi
| Dimensions (mm) | 1/4 DIN, 96x96x148 |
|---|---|
| Power (V AC) | 110 or 230 (50/60) |
| Suspend Solid Range 1 (mg/L) | 0.0 to 1000 (TCS-1000) |
| Suspend Solid Range 2 (mg/L) | 0 to 50000 (TCS-MXS-A) |
| Calibration | 1 to 5 Point |
| Current Output | One Set Of Isolated and Reversible 4 to 20 mAcurrent Output |
| Digital output | Isolated RS-485 Modbus Output |
| Electrode Self Cleaning (minute) | 10 or 30 |
| External Cleaning Controller | ON 0 to 9999 seconds；OFF 0 to 999.9 Hours. Self Programmable |
| Maximum Load (ohm) | 500 |
| Repeatablity (% F.S.) | ±2 |
| Suspend Solid Accuracy 1 (% F.S.) | ±3 |
| Suspend Solid Accuracy 2 (% F.S.) | ±3 |
| Suspend Solid Resolution 1 | 1 |
| Suspend Solid Resolution 2 | 1 |
| Turbidity Accuracy 1 (% F.S.) | ±3 |
| Turbidity Resolution 1 | 0.01 |
| Turbidity Self Cleaning 1 (mins) | 10 |
| Turbidity Self Cleaning 2 (mins) | 10 |
| Turbidity Self Cleaning 3 (mins) | 10 |
