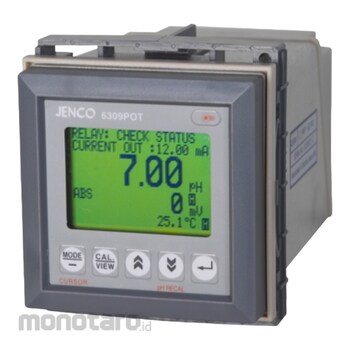

6309POT 1/4 DIN Panel Mount pH & ORP Analyzer by Jenco
pH & ORP analyzer,1/4 DIN panel mount IP-65 case. Features 2 pH and 2 ORP fully programmable relays and one for temperature. RS-485 interface, password protected with individual ID's. 4-20 mA analog output is fully programmable, assignable & reversible. Graphical display. Tinned lead connectors. CE Approved.
Ph/ORP/temp. measurement & control
Display pH electrode efficiency
Reversible & isolated 4~20ma output
RS-485 output
Bumpless calibration
Graphic LCD dispaly,128 x 64with backlight
Membrane switch with audio feedback
Auto temp. compensation
High 50/60 hz noise rejection
Pipe/wall/panel mounting
1/4 DIN watertight enclosure
One programmable relay for temp.
CE approved
Programmable linear/ORP current output or programmable linear/ anti-logarithmic current output
JENCO Dual Parameter Analyzer
#Grup produk P107778028
Spesifikasi
| Control Type | On/Off |
|---|---|
| Temperature Compensation Range (°C) | -10.0 to 120.0 |
| Accuracy | (pH: 0.1% ± 1 LSD), (ORP (Absolute): ±0.1% rdg ± 1mV), (ORP (Relative): ±0.1% rdg ± 1mV), (Temp.: ± 0.3°C) |
| Resolution | (pH: 0.01pH), (ORP(Absolute): 1mV), (ORP(Relative): 1mV), (Temp.: 0.1°C) |
| Accuracy (mA) | ±0.02 |
| Buffer Temperature Range (°C) | 0 to 60.0 |
| ATC Sensor | Thermistor 10 Kiloohms at 25 c |
| Depth (mm) | 148 |
| Electrode Offset Compensation (mV) | ±100 |
| Electrode Slope Compensation (%) | ±30 of Ideal Slope |
| Isolation Voltage (VDC) | 500 |
| Maximum Load (W) | 500 |
| ORP | 2 programmable High or 2 Low |
| Power Source (V AC) | 115/230 (50/60hz) |
| Pre-Amplifier Voltage (VDC) | ±5 (20mA Max Output) |
| Range | Selectable Zero, & Span |
| Ranges | (pH: -2.00 to 16.00), (ORP(Absolute): -2500 to 2500mV), (ORP(Relative): -6499 to 6499mV), (Temp.: -10.0 to 120 °C) |
| Temperature | 1 Programmable High or 1 Low |
| Type (mA) | Isolated 4 to 20 |
| pH (Potencial of Hydrogen) | 2 Programmable High or 2 Low |
