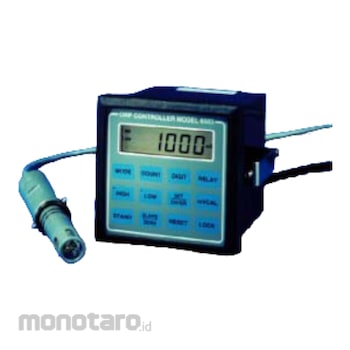

6503 ORP Transmitter/Controller with 1 ORP & 1 pH Inputs, 1/4 DIN by Jenco
1/4 DIN panel mount ORP controller/transmitter, microprocessor based, password protected with membrane keypad. LCD displays ORP or pH and temp. Meter has dual SPDT Hi/Lo relays, with programmable hysteresis and a reversible, isolated and programmable 4-20 mA output. Connectors are dual BNC for pH/ORP and spade lug type. ATC is 10K thermistor or simulation resistor. Power 115 / 230V AC
Controls ORP & measures pH
Offset calibration for ORP
Set point security code protection
Dual on/off relays
0.5 high LCD display
Auto/manual temp. compensation
Power down memory backup
Audio feed back touch keys
1/4 DIN housing
JENCO ORP Transmitter/Controller with 1 ORP & 1 pH Input
#Grup produk P107777986
Spesifikasi
| Isolated Current Output (mA) | Reversible & Programable 4 to 20 |
|---|---|
| Relay Output (Resistive Load) | 5 Amp at 115V AC or 2.5 Amp at 230V AC |
| Relay Set Point Hysteresis | User Programable |
| Temperature Range (°C) | 0 to 115 |
| Temperature Compensation (°C) | Auto/Manual (Thermistor 10kw at 25°C) |
| Default ORP Buffer (mV) | 86 |
| Input Impedance (ohm) | >10exp(13) |
| Isolation Voltage (V DC) | 500 (max) |
| Power Failure Back Up | Yes |
| Power Source (V AC) | 115 or 230 (50/60 hz) |
| Range | (pH: -2.00 to 16.00 pH), (ORP: -1999 to 1999 mV) |
| Resolution | pH: 0.01 pH, ORP: 1 mV, Temp.: 0.1 °C |
| Transmitter Load (ohm) | 550 (maximum) |
| pH Buffer Recognition | 4.00. 6.86. & 9.18 |
| pH Slope Recognition (%) | ±30 |
