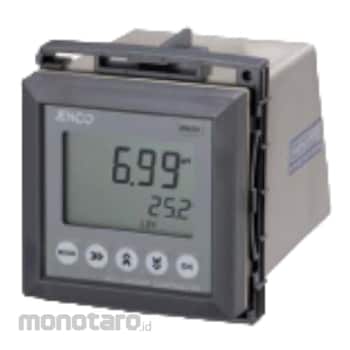

6313 Single Parameter pH or ORP Controller, 2-Relays, IP-65 Case, RS-485 by Jenco
Clear LCD displays pH or mV, with temperature and relay status simultaneously.
Automatic buffer recognition of US and NIST buffer sets. Calibration data is stored in memory and is ready for use on power up.
Displays absolute and relative ORP.
Isolated and reversible 4-20 mA current output for pH or ORP allows it to be used as a proportional output.
2 programmable on/off relays: 2 for pH or ORP.
CE Approved
Password protection.
IP65
JENCO Single Parameter pH Or ORP Controller
#Grup produk P107777940
Spesifikasi
| Power (V AC) | 115 or 230 (at 50/60 HZ) |
|---|---|
| Ambient Temperature Range (°C) | From 0 to 50 |
| Current Output Range (mA) | 4 to 20 (isolated), Programmable Span |
| Maximum Load (ohm) | 500 |
| Isolation Voltage (V DC) | 500 |
| Case | IP 65 ,1/4 DIN Case, Depth : 148 |
| Control Type | 2 ON/OFF Controls |
| Current Output Scale | User Programmable, Linear |
| Input Impedance (ohm) | >10(exp)13 |
| Input Select | User Selectable pH or ORP |
| Relay Output | 5A at 115V AC or 2.5A at 220V AC, Resistive Load Only |
| Resolution | pH: 0.01pH, mV(absolute /relative): 1mV /1mV, Temperature: 0.1°C |
| Security | 4-Digit Password |
| pH Buffer Recognition | (4.01 ,7.00 ,10.01) or NIST (4.00,6,86,9.18), User Selectable |
| pH Electrode Offset Recognition | ±100mV at pH 7.00 /-91.7mV to +108,3mV at pH 6.86 |
| pH Electrode Slope Recognition | ±30% at pH 4,00, 4,01 ,9.18 or 10.01 |
