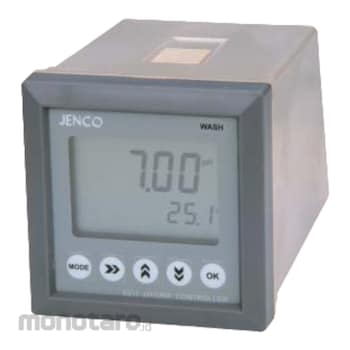

6311 Single Parameter pH or ORP Analyzer by Jenco
pH & ORP analyzer,1/4 DIN panel mount IP-65 case. Features 4 fully programmable relays for pH or ORP and one for wash. RS-485 interface, password protected with individual ID's. 4-20 mA analog output is fully programmable, assignable & reversible. Tinned lead connectors. CE Approved.
Ph/ORP/temp. measurement & control
Display pH electrode efficiency
User selectable ATC element: 3k balco, 10k, and pt-1000
Reversible & isolated 4~20ma output
RS-485 output
Bumpless calibration
Graphic LCD dispaly,128 x 64with backlight
Membrane switch with audio feedback
Auto temp. compensation
High 50/60 hz noise rejection
Pipe/wall/panel mounting
1/4 DIN watertight enclosure
One programmable relay for temp.
CE approved
Programmable linear/ ORP current output or programmable linear/ anti-logarithmic current output
JENCO Single Parameter pH Or ORP Analyzer
#Grup produk P107777904
Spesifikasi
| Dimensions (mm) | 1/4 DIN, Depth 148 |
|---|---|
| Control Type | ON/Off |
| Communication | RS-485 |
| Temperature Compensation Range (°C) | -10.0 to 120.0 |
| Resolution | pH: 0.01pH, ORP(Absolute): 1mV, ORP(Relative): 1mV, Temp.: 0.1°C |
| Accuracy (mA) | ±0.02 |
| Buffer Temperature Range (°C) | 0 to 60.0 |
| Electrode Offset Compensation (mV) | ±100 |
| Electrode Slope Compensation (%) | ±30 of Ideal Slope |
| Isolated Voltage (V DC) | 500 |
| Keypad | Audio Feedbackup |
| Maximum Load (W) | 500 |
| Power Source (V AC) | 115/230 (50/60hz) |
| Pre-Amplifier Voltage (V DC) | ±5 (20mA Max Output) |
| Range | Selectable Zero, & Span |
| Security Protection | 4 Digit Password |
| Temperature | 1 Programmable, Manual Relay |
| Type (mA) | Isolated 4 to 20 |
