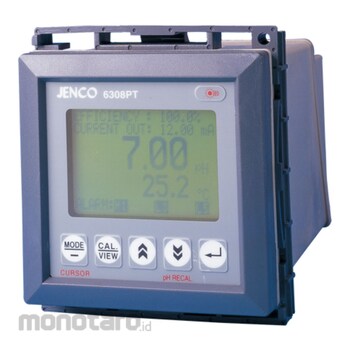

1/4 DIN panel mount pH single parameter analyzer with electrode efficiency display function. Features pH linear or antilog transmitter output, hysteresis control and uninterrupted operation during pH calibration. Has one 4 ~ 20 mA output, 5 relays and a RS-485 communications interface. Graphical display. 115/230 VAC. CE Approved.
- Bright, graphical LCD display, 1.5 x 2.25
- Simultaneous measurement and analysis
- 1/4 DIN watertight, IP65 rated enclosure
- Reversible & isolated 4 to 20 mA output with adjustable bandwidth
- Continuous controller / relays operation during calibration
- 4-digit password security protection
- Programmable set point hysteresis
- Automatic temperature compensation
- CE approved
- Built in ISO9001 certified facility
- Membrane keypad with audio feedback
- Power down, non-volatile memory backup
- RS-485 output
- Multiple spst on/off relays
- Embedded self diagnostic program
- High 50/60 Hz noise rejection
JENCO Analyzer Graphic Display, Ip-65 Case
#Grup produk P107777889
Spesifikasi
| Relay Set Point Hysteresis | User Programmable |
|---|---|
| Dimensions (mm) | 1/4 DIN, Depth 148 |
| Temperature Range (°C) | -10.0 to 120.0 |
| Temperature Resolution (°C) | 0.1 |
| Temperature Accuracy (°C) | ±0.1 (± 1 Digit) |
| Current Output Range (mA) | 4 to 20 (Isolated) |
| ATC Sensor (°C) | Thermistor 10k ohms at 25 |
| Accuracy (pH) | ±0.01 (± 1 Digits) |
| Control Type | ON/Off |
| Current Output Scale | User Programmable, Linear or Log |
| Digital output | RS-485 |
| Isolated Voltage (V DC) | 500 |
| Maximum Load (ohm) | 500 |
| Power Source (V AC) | 115/230 (50/60Hz) |
| Pre-Amplifier Voltage (V DC) | ±5 (20mA Max Output) |
| Range (pH) | -2 to 16 |
| Relay Output (Resistive Load Only) | 5 Amps at 115 VAC, 2.5 Amps at 230 VAC |
| Resolution (pH) | 0.01 |
| Security Protection | 4 Digit Password |
| Temperature | 1 Programmable High or Low |
