Scalable 12 to 36 VDC loop powered 4 - 20 mA transmitter, power down flash memory, 1/4 DIN IP65 case.
- Clear LCD displays pH or mV, simultaneously with temperature.
- "Automatic buffer recognition of US and NIST buffer sets. Calibration
data is stored in memory and is ready for use on power up."
- "Isolated and reversible 4 ~ 20 mA current output for pH or ORP
allows It to be used as a proportional output."
- Auto or Manual Temperature Compensation.
- IP65

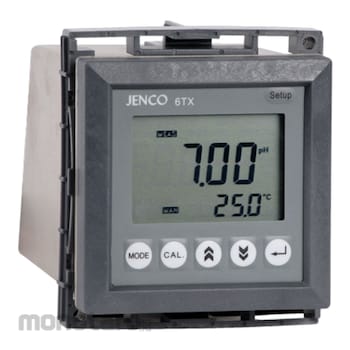

JENCO 2-Wire pH Transmitter/Controller
#Grup produk P107777861
Spesifikasi
| Temperature Range (°C) | -10.0 to 120.0 |
|---|---|
| Temperature Resolution (°C) | 0.1 |
| Temperature Accuracy (°C) | ±0.3 |
| Ambient Temperature Range (°C) | From 0 to 50 |
| Current Output Range (mA) | 4 to 20 (isolated), Programmable Span |
| Case (mm) | IP 65, 1/4 DIN Case, Depth : 148 |
| Accuracy (pH) | ±0.01 |
| Input Impedance | >1013 ohms |
| Input Select | User Selectable pH or ORP |
| ORP Accuracy (mV) | ±1 |
| ORP Range (mV) | -1000 to 1000 |
| ORP Resolution (mV) | 1 |
| Power (V DC) | 12 to 36 |
| Range (pH) | -2 to 16 |
| Resolution (pH) | 0.01 |
| pH Buffer Recognition | US (4.01,7.00,10.01) or NIST (4.00,6.86,9.18) User Selectable |
| pH Electrode Offset Recognition (mV) | ±90 |
| pH Electrode Slope Recognition (%) | ±30 |
