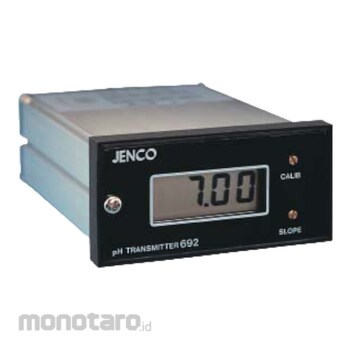

692 1/8 DIN Panel Mount pH Transmitter with 4-20 mA Output by Jenco
1/8 DIN panel mount pH transmitter with 4-20 mA output and calibration by potentiometers. ATC temperature control uses a Pt-100 or simulation resistor. Features a large LCD display and uses a BNC input and spade lug screw type connector block.
All solid state design
ATC
Low power consumption design, reduced internal heating thus increased reliability
0.56 high LCD display
Isolated 4 to 20 mA current output
High stability and fast response
1/8 DIN standard aluminum case
Easy to install
Heat cycled 100 hours before shipment
JENCO Transmitter, PT-100 ATC
#Grup produk P107777764
Spesifikasi
| Temperature Sensor | PT-100 |
|---|---|
| Dimensions (mm) | 96x48x152 |
| Display | 0.56 High LCD |
| Range (pH) | 0 to 14 |
| Input Impedance | Greater Than 10 to 12th ohms |
| Resolution (pH) | pH: 0.01 |
| Accuracy | pH: ± 0.02 pH ± 1 LSD |
| Current Accuracy (%) | 0.1 |
| Current Output (mA) | Isolated 4 to 20 |
| Isolation Voltage (V DC) | 500 (min) |
| Maximum Transmitter Load (ohm) | 600 |
| Power Source (V AC) | 115 (230 VAC, ± 10% 50/60 hz) |
| Temperature Compensation (°C) | Auto 0 to 100 |
