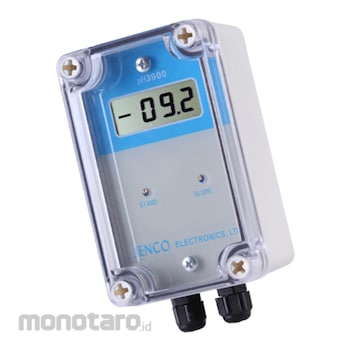

pH3900 2-Wire pH Transmitter by Jenco
Industrial 2-wire pH transmitter with an isolated 4 ~20 mA current output with an LCD display for pH and is designed for pH electrodes with a built in RTD type Pt-100 ATC temperature sensor, meter is DC loop powered for DC voltages in the 11 to 50 VDC range and comes in a watertight IP-65 case and is easily wall mounted.
Clear LCD displays pH
Isolated 4 to 20 mA current output for pH
Wide range power supply, 11 to 50 V DC
Automatic temperature compensation
Easy to install for wall setting
IP65 watertight casing
Isolated two wire 4 to 20 mA
JENCO 2-Wire pH Transmitter
#Grup produk P107777700
Spesifikasi
| pH Buffer Types | US (4.01, 7.00, 10.0) or NIST (4.00, 6.86, 9.18) |
|---|---|
| Temperature Compensation (°C) | Auto 0 to 120 (PT100) |
| Range (pH) | 0 to 14 |
| Resolution (pH) | 0.01 |
| Accuracy (pH) | ±0.02 |
| Current Output (mA) | One 4 to 20 (Isolated) |
| Load Resistance (ohm) | 550 |
| Power (V DC) | 11 to 50 |
| pH Calibration | 2 Point Calibration, Manual |
