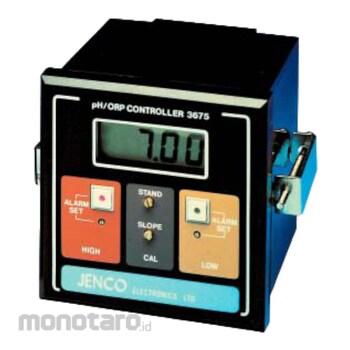

3675 1/4 DIN Panel Mount pH/ORP Controller/Transmitter by Jenco
1/4 DIN panel mount pH/ORP controller/transmitter with dual SPDT Hi/Lo relays, manual set points and calibration are via potentiometers. Features a 4-20 mA current output and has an external pH/ORP select switch. Display is a large LCD. Connectors are a BNC and spade lug screw type connector blocks. Meter requires a Pt-100 ATC or a simulation resistor for temperature. Power 115/230V AC.
Isolated 4 to 20 mA output
Dual on/off relays
Large LCD display
ATC
115VAC /230VAC operations
Compact 1/4 DIN case
Low power solid state design
Front panel output current span adjustable control
Front panel acid/base influent select switch
Front panel high/low relay format select switch
JENCO pH/ORP Transmitter/Controller
#Grup produk P107777621
Spesifikasi
| Dimensions (mm) | 96x96x119.3 |
|---|---|
| Temperature Compensation (°C) | Auto 0 to 100 |
| Isolation Voltage (V DC) | 500 (max) |
| Accuracy | pH: ± 0.01, ORP: ± 0.1% |
| Resolution | pH: 0.01, ORP: 1 |
| Current Output pH/ORP (ph/mV) | (0.00-14.00/-1400-1400), (0.00-14.00/-1999-1999) |
| Input Impedance (ohm) | Greater Than 10exp(12) |
| Isolated 4-20mA Output Range | Over Imput Span |
| Load Resistance Maximum (ohm) | 500 |
| Operating Temperature (°C) | 0 to 40 |
| Power Source (V AC) | 115 (230 VAC ± 15% 50/60 hz) |
| Range | (pH: 0 to 14.00), (ORP: -1999 to 1999 mV) |
| Readout (mm) | 12.7 (High LCD) |
| Relay Hysteresis pH/ORP (pH/mV) | ±0.1/±10 |
| Relays Output (max.) | 5amp. at 115VAC, 2.5 amp. at 230 VAC, Resistive Low |
