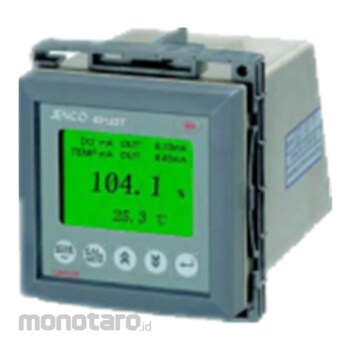

Dissolved Oxygen, Temperature In-line Analyzer. 1/4 DIN, IP65, panel mount DO/Temp analyzer with two sets of 2 wire 4 to 20 mA current output, 2 sets of programmable on/off relay, RS-485 output and backlight.
- Graphic LCD with manual backlight displays dissolved oxygen, temperature, relay status and transmitter current mA output simultaneously.
- Calibration data is stored in memory and is ready for use on power up.
- Two sets of isolated and reversible 4 to 20 mA current output for dissolved Oxygen and temperature allows it to be used as a proportional output.
- 4 programmable on/off relays: 3 for dissolved oxygen and 1 for temperature.
- RS-485 output for remote access allows multiple units to be connected and ganged together.
- Password protection.
- IP65
JENCO Fermentable/Sterilizable Analyzer
#Grup produk P107777427
Spesifikasi
| Temperature Range (°C) | -10.0 to 120.0 |
|---|---|
| Temperature Resolution (°C) | 0.1 |
| Temperature Accuracy (°C) | ±0.1 |
| Power (V AC) | 115 or 230 (at 50/60 HZ Factory Pre-Set) |
| Ambient Temperature Range (°C) | From 0 to 50 |
| Display | 128 x 64 Graphical LCD with Backlight |
| Control Type | 4 ON/OFF Controls |
| DO Accuracy (% F.S.) | ±0.2 |
| DO Resolution (ppm/ppb) | 0.001/1 |
| DO% Saturation Accuracy (% F.S.) | ±0.2 |
| DO% Saturation Range (%) | 0.0 to 500.0 |
| DO% Saturation Resolution (%) | 0.1 |
| Digital output | RS-485 |
| Isolation Voltage (V DC) | 500 |
| Maximum Load (ohm) | 500 |
| Pressure Compensation (mBar) | Manual 600 to 4000 |
| Relay Output | 5 A at 115 V AC or 2.5 A at 220 V AC, Resistive Load Only |
| Salinity Compensation (ppt) | Manual 0.0 to 49.9 |
| Security | 4-Digit Password |
| Temperature Compensation (°C) | Auto -10.0 to 80.0, 22 Kohm NTC |
