pH, Dissolved Oxygen, Temperature In-line Analyzer. 1/4 DIN, IP65, panel mount pH/DO/Temp analyzer with 1 wire 4-20 mA current output, 2 sets of programmable on/off relay, RS-485 output (MODBUS RTU) and backlight.
- Graphic LCD with manual backlight displays pH, dissolved oxygen,temperature, relay status and transmitter current mA output simultaneously.
- Automatic buffer recognition of US and European buffer sets.Calibration data is stored in memory and is ready for use on power up.
- Isolated and reversible 4 ~ 20 mA current output for pH/ dissolved oxygen allows it to be used as a proportional output.
- 5 programmable on/off relays: 2 for pH, 2 for dissolved oxygen and 1 for temperature.
- RS-485 output (MODBUS RTU) for remote access via an compatible computer allows multiple units to be connected and ganged together.
- Password protection.
- IP65 watertight case.

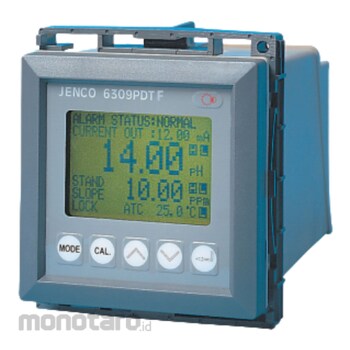

JENCO pH/Temp/Dissolved Oxygen Analyzer Meter
#Grup produk P107777384
Spesifikasi
| Temperature Range (°C) | -10.0 to 120.0 |
|---|---|
| Temperature Resolution (°C) | 0.1 |
| Temperature Accuracy (°C) | ±0.1 |
| Ambient Temperature Range (°C) | From 0 to 50 |
| Display | 128 x 64 Graphical LCD with Backlight |
| Current Output Range (mA) | 4 to 20 (Isolated) |
| Accuracy (pH) | ±0.01 (± 1 Digits) |
| Control Type | 5 ON/OFF Controls |
| Current Output Scale | User Programmable, Linear or Log |
| Digital output | RS-485 (Modbus Protocol) |
| Input Impedance (ohm) | >1013 |
| Isolation Voltage (V DC) | 500 |
| Maximum Load (ohm) | 500 |
| Power | 115 or 230 (at 50/60 Hz) |
| Pressure Compensation (mBar) | Manual 600 to 1100 |
| Range (pH) | -2 to 16 |
| Resolution (pH) | 0.01 |
| Salinity Compensation (ppt) | Manual 0.0 to 49.9 |
| Security | 4-Digit Password |
| pH Temperature Compensation (°C) | Auto -10.0 to 120.0 |
