WS-5325H Wireless Set

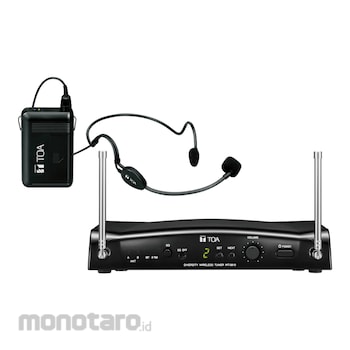

The WS-5325H wireless microphone system set includes a wireless transmitter WM-5325, a headset microphone WH-4000H, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. With the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WH-4000H employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
TOA Wireless Headset Microphone
#Grup produk P107773865
Spesifikasi
| Product Composition | Wireless transmitter WM-5325 …1, Headset microphone WH-4000H, …1,Diversity wireless tuner WT-5810 …1 |
|---|---|
| Frequency Range (MHz) | 576 - 865 (*1), UHF |
| Tone Frequency (kHz) | 32768 |
| Operating Temperature (°C) | -10 to +50 (14 to 122°F) |
| Accessory | AC adapter (*2) …1, Screw driver …1, Strage case …1, Neck strap …1 |
| Modulation | Frequency modulation |
| Antenna | Built-in type |
| Battery | WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery |
| Battery Life | Approx. 13 (when the WB-2000 rechargeable battery is used) Approx. 10 (when the alkaline battery is used) |
| Channel Selectable | 64 channels (the number of channels may differ from country to country) |
| Dimensions (WxHxD) (mm) | Wireless Transmitter 62x102.5x23, Diversity Wireless Tuner 206x40.6x152.7 (D) mm (8.11x1.6x6.01inch) (excluding antenna) |
| Finish | Resin, coating |
| Indicator | Power/Battery lamps |
| Maximum Input Level | -14 dB to -29 dB (*3) (Audio level control: Min. to Max.) |
| Oscillator | PLL synthesized |
| RF Carrier Power | Less than 50 mW (Factory preset 10 mW ERP) |
