Hybird scale

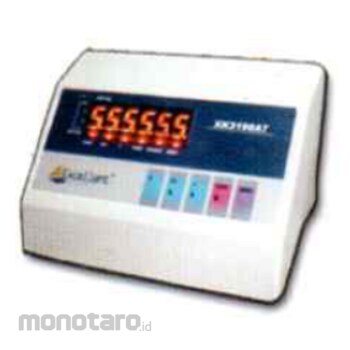

weighing indicator A7, widely applied in conversion mechanic-electronic scale (hybrid scale).
indicator a7+, widely applied in bench scale ,floor scale ,and so on. Weighing system equipped with 1-4 at 350 ohm load cell.
Function:
Indicator A7 built-in load cell and hook for Link with mechanic scale to be conversion mechanic-electronic scale (hybrid scale)
There are 3 capacity of builtin load cell:
40kg can use for capacity 150kg-300kg
60kg can use for capacity 300kg-500kg
120kg can use for capacity 600kg-1000kg
high precison A/D conversion with max. external counts 15000
Call and display inner code to replace weight observing and analysis tolerance
set up zero tracking range, zero (auto/manual) range and zero speed
Indicating for battery volume or status
protection for low battery
AC/DC power supply with built-in rechargeable 12V/2.8Ah battery
Excellent Scale Weighing Indicator with Built-in Loadcell
#Grup produk P107707482
Spesifikasi
| A/D conversion method | Double integral |
|---|---|
| Max. A/D Conversion | About 500000 |
| Input Signal Range (mV) | 0-16 |
| Input Sensitivity (µV/e) | ≥2 |
| A/D Conversion Speed (time/s) | 12-15 |
| Display | 6 Bits LED, 6 Status indications |
| Display Range | 0-999990 (d=10) |
| Division | 1/2/5/ 10/20/50 Optional |
| Load Cell Connection Mode | 4 Wire |
| Load Cell Excitation | DC 8V; I ≤150mA |
| Max. Connection Number Of Load Cell | 1 At 350 Ohm (A7), 4 At 350 Ohm (A7+) |
| Power Supply (V) | AC 187-242 (49-51Hz) And DC Rechargeable Battery 12 (2.8Ah) |
| Verified Counts | 3000 |
