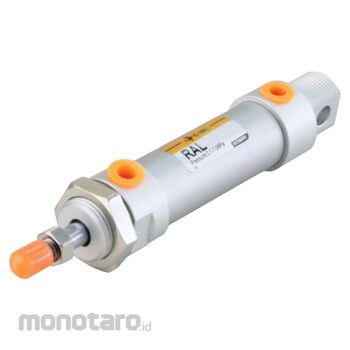

EMC RAL Series Aluminium Alloy Mini Cylinder
#Grup produk P107705545
Spesifikasi
| Acting Type | Double Acting/Single Acting |
|---|---|
| Working Medium | Clean Air (40µm filteration) |
| Guaranteed Pressure (MPa) | 1.5 |
| Working Temperature (°C) | -20 to 80 (Dry air) |
| Barrel Material | Aluminium Alloy |
| Cushion Type | Fixed cushion / Air Cushion |
| Mounting Type | LB, FA, SDB |
| Speed Range (mm/s) | 50-800 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
RAL series aluminium mini pneumatic cylinder, bore size range from 16 to 40mm. Front and rear cap are processed by high precision CNC machine, with strong guarantee of high consistency and concentricity. The barrel and front/rear cap of the mini pneumatic Cylinder are connected by thread structure with strong glue with durable time. Special air cushion design keeps less impact from piston to front/rear cap. Caps positioning machine guarantees front and rear caps of the mini cylinder locate at same horizontal position, easier to install. Better sealing performance with Japanese seals, together with Germany grease, gives RAL series aluminiu mini round pneumatic cylinder longer life.Standard with swiveling tail type, flat tail and round tail types are optional.
Feature
- Front/rear covers machined by All-in CNC machine, high consistency and concentricity- Japanese anti-dust seals, better sealing performance and dust protection
- Threaded connection between barrel and covers with glue, easy and stable
- Special air cushion design, less impact from piston to front/rear cover
- Caps positioning machine guarantees front and rear caps locate at same horizontal position, easier to install
