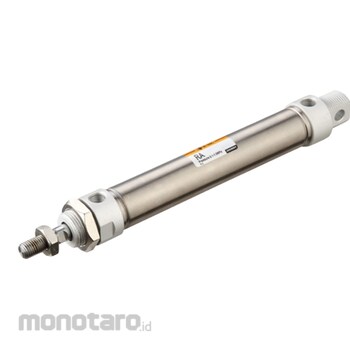

RA Series Mini Pneumatic Cylinder
RA series stainless steel mini round pneumatic cylinder, bore size range from 16 to 40mm. Front and rear cap of the mini cylinder are processed by high precision CNC machine, with strong guarantee of high consistency and concentricity. Pneumatic Cylinder barrel and front/rear cap are connected by riveted structure, leading to better performance and compression resistance. Special air cushion design keeps less impact from piston to front/rear cap for the mini pneumatic cylinder. Caps positioning machine guarantees front and rear caps locate at same horizontal position, easier to install. Better sealing performance with Japanese seals, together with Germany grease, gives RA series mini pneumatic cylinder longer life. Standard with swiveling tail type, flat tail and round tail types are optional.
EMC RA Series Stainless Steel Mini Cylinder
#Grup produk P107705527
Spesifikasi
| Acting Type | Double Acting/Single Acting |
|---|---|
| Working Medium | Clean Air (40µm filteration) |
| Guaranteed Pressure (MPa) | 1.5 |
| Working Temperature (°C) | -20 to 80 (Dry air) |
| Barrel Material | Stainless Steel |
| Cushion Type | Fixed Cushion/Adjustable Cushion |
| Mounting Type | LB, FA, SDB |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Front/rear covers machined by All-in CNC machine, high consistency and concentricity- Japanese anti-dust seal, better sealing performance and dust protection
- Riveted structure for Cylinder barrel and front/rear cover, higher efficiency, better apperance and stronger compression resistance
- Special air cushion design, less impact from piston to front/rear cover
- Caps positioning machine guarantees front and rear caps locate at same horizontal position, easier to install
