A photoelectric sensor used in combination with a reflector. Detects approaching cranes, trucks, etc. The distance between the two points is calculated from the phase difference between the reference light emission signal and the light reception signal from the reflector, and when the distance is within the arbitrarily set distance, control outputs (OUT1, 2) are output. A failure output (FAULT) is output when the amount of light emitted or received light decreases.
*KAD-300 outputs control outputs (OUT1, 2, 3).

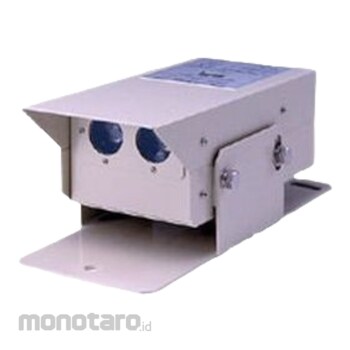

Hokuyo Electric Photoelectric Sensor Alarm Device
#Grup produk P107699581
Spesifikasi
| Detection Method | Limited reflective |
|---|---|
| Detection Distance (mm) | 4 to 20000 |
| Sensing Object | Dedicated reflector |
| Power Consumption | 10VA or less at AC100V, 15VA or less at AC200V |
| Accuracy | Absolute accuracy: ±400mm |
| Control Output | 1C relay contact (AC250V 3A, cosΦ=1) When within the set distance…Relay de-energized, indicator light on |
| Power Supply Voltage (V) | 100 to 240 AC (-15%, +10%, 50/60Hz) |
