FLUKE Networks Peralatan Pendeteksi Sirkuit Kabel Pro3000
#Grup produk P107699040
Spesifikasi
| User Interface | Slide switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT or OFF Tone mode LED Continuity/Polarity LED |
|---|---|
| Frequency (Hz) | Solid 1000 nominal, Alternating 1000/1500 |
| Output Power in Tone Mode | 8 dbm into 600 ohms |
| Output Voltage Level in Continuity Mode (V) | DC 8 with fresh battery |
| Battery (V) | Alkaline 9 |
| Case Dimensions (cm) | Toner 6.9x6.1x3.6 (2.7x2.4x1.4inch), Probe 24.9x4.1x3.3 (9.8x1.6x1.3inch) |
| Overvoltage Protection (V) | DC 60 in Toner/Polarity Mode |
| Temperature (°C) | Toner : Operating: -20 to 60, Storage: -40 to 70, Probe : Operating: -20 to 60, Storage: -40 to 70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

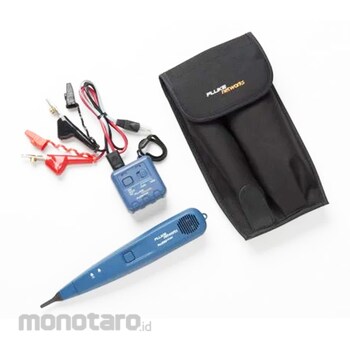

Pro3000™ analog tone generator and probe kit uses the SmartTone™ technology, with five different tones for exact pair identification, and provides clear and precise tracing of communication cabling. Simply short the selected pair at the near or far end to change the cadence of the tone generated.
Feature
- Send tone signal up to 10 miles (16 km) on most cables- Analog tone generator with bed-of-nails clips, unfiltered probe
- SmartTone™ provides 5 distinct tones for exact pair identification
- Continuity testing and line polarity confirmation
- Ergonomic sleek design, 3.5 mm headphone jack
