Overview
- Robust stainless housing for harsh environment conditions
- Standard use from -1 to 400 bar
- Robust ceramic measuring cell
- Abrasive resistant due to ceramic measurement cell
- Absolute pressure, relative pressure and vacuum measurement

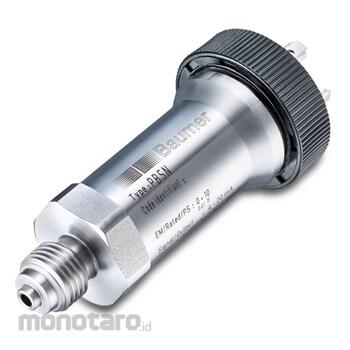

BAUMER Pressure Transmitter / Vacuum Sensor
#Grup produk P107697246
Sebelum PPN:
Rp4.199.900 - Rp6.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Housing Material | SS 1.4301 AISI 304 |
|---|---|
| Kind of Pressure | Relative (Gauged) |
| Output Signal (mA) | 4 to 20 |
| Output Connection | DIN EN 175301-803 A (DIN 43650 A), 4-pin |
| Accuracy (% F.S.) | ±1.0 |
| Current Output (mA) | 4 to 20, 2-wire |
| Degree of Protection (EN 60529) | IP 65 , with connector DIN EN 175301- 803 A (DIN 43650 A), 4-pin IP 67 , with connector M12-A. 4-pin IP 67 , with shielded cable |
| Long Term Stability (% FSR/a) | ≤ 0.2 |
| Operating Temperature Range (°C) | -20 to 85 |
| Process Connection | 1/2-14 NPT (N02) |
| Process Connection Material | Stainless steel 1.4404 AISI 316L |
| Seal | NBR standard |
| Storage Temperature Range (°C) | -40 to 100 |
| Temperature Compensation Range (°C) | -20 to 60 |
| Voltage Output (V) | 0 to 10, 3-wire 0 to 5, 3-wire 0.5 to 4.5, 3-wire 1 to 5, 3-wire |
| Voltage Supply Range | 15 to 30 V DC , with voltage output 8 to 30 V DC , with current output |
