MYCOM Pressure Transmitter
#Grup produk P107690562
Sebelum PPN:
Rp6.699.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Power Source (V) | 24 DC±10% |
|---|---|
| Accuracy (%) | ±1 F.S. (include linearity hysteresis and repeatability) |
| Applicable Temperature Range (°C) | -20 to 70 (no icing or dew formation.) |
| Temperature Characteristics | Zero thermal drift : ±0.1% F.S. (at accuracy of ±1% F.S.); Span thermal drift : ±0.1% F.S. (at accuracy of ±1% F.S.) |
| Response Time (ms) | <1 |
| Case | Drip-proof Type II (JIS C 0920) |
| Connecting Part Material | Element SUS630 or equivalent, Joint SUS316, NBR (with O-ring for the pressure range less than 10Mpa) |
| Connecting Screw | PT1/4 |
| Load Resistance (ohm) | max. 500 (4 to 20mA DC); max. 10000 (1 to 5V DC); max. 10000 (0 to 5V DC) |
| Maximum allowable Pressure | 200% of rated pressure |
| Refrigerant | NH3 (R717), R22, R404A, Water, Glycol |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

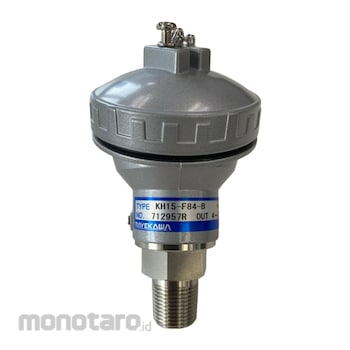

KH15 type pressure transmitter (R Type) is a small but rugged pressure transmitter which is a semi-conductor strain gauge at pressure pick up part.
