Hioki DC Signal Source
#Grup produk P107673264
Kondisi Barang:
Spesifikasi
| Voltage (V) | 0-25 |
|---|---|
| Operating Temperature (°C) | 0 to 40 |
| Current | 25mA: 0 to ±28.000 mA |
| Power Supply | Four LR6 alkaline batteries or HR6 Ni-MH batteries, or 9445-02 / -03 AC ADAPTER |
| Continuous Operating Time (w/fully charged 2500-mAh Ni-MH batteries) | Approx. 200 min (CC: 25mA range, sourcing 20 mA into 250 Ω load), Approx. 170 min (CV: 25V range, sourcing 25 V into 1 kΩ load) Approx. 280 min (V: 2.5V range, input terminals shorted) |
| A/D conversion method | Delta-sigma |
| Dimensions (mm) | 104x180x58 |
| Display | Five-digit LCD (“28000”) |
| I/O Protection (mA) | 50, Fused (sourcing and measuring) |
| Source Output Method | Bipolar sink/source |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

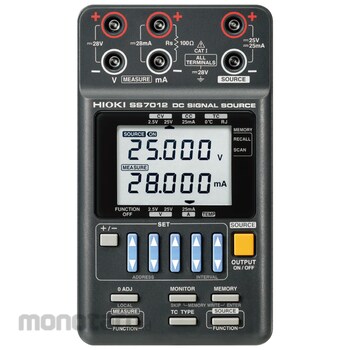

The HIOKI DC SIGNAL SOURCE SS7012 can be used not only for instrumentation system (4-20 mA) maintenance, but also for maintaining and servicing thermostatic devices, distributors, and industrial meters, as well as for evaluating electronic circuits and devices, and for production facility maintenance. The signal source also supplies thermoelectromotive force corresponding to eight types of thermocouples. Furthermore, this compact DC signal source simultaneously sources and measures signals.
Feature
• Simultaneously s sources up to ±25 V and ±25 mA while measuring up to ±28 V and ±28 mA (DC)• Eight thermoelectromotive force sourcing (TC) modes (K, E, J, T, R, S, B, and N)
• TEMP measurement from -25 to 80°C
• Improved stability and lower calibration costs
• Control from a PC via USB connection
Dokumentasi Produk
