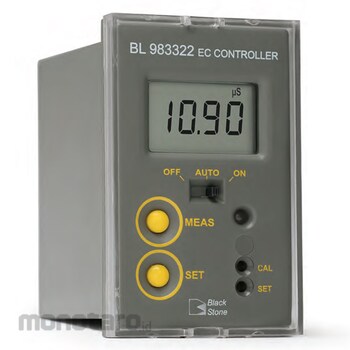

Hanna Instruments EC Mini Controller

Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is above the set point. The relay can be used to activate a solenoid that switches from one DI (deionised) tank to another or to open a valve that will allow lower EC water to flow into a tank being monitored in order to lower its EC. The BL-983322 can also be used to monitor the quality of water from DI tanks or from a distillation apparatus. The BL-983322 measures EC from 0.00 to 19.99 μS/cm.

Adjustable Dry Contact Dosing Relay
The BL-983322 features a dosing relay that is activated when the reading is above a user programmable set point.

Programmable Overdose Protection
For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.

Relay Control Override
With the flick of a switch the mini controller's relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.

Multicolour LED Indicator
Multicolour LED indicator allows an operator to quickly check the status of the controller.


Green = Meter in measurement mode and reading is below the set point
Orange/Yellow = Reading is above the set point and the relay is activated
Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded


Fuse Protected Dosing Contacts
The relay dosing contact is rated for up to a 2A load and is fuse protected.

Labelled Termination Connections
Quick-connect terminal blocks are clearly labelled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light.

1/2" NPT Male Threaded Amperometric Probe for Mounting In-line
The BL-983322 mini controller uses the HI-7634-00 conductivity probe that is available with different cable lengths.
HI-7634-00 is not included and must be ordered separately.

Order Information:
The BL 983322 is supplied with mounting brackets, transparent cover, and instructions.




Range

0.00 to 19.99 µS/cm


Resolution

0.01 µS/cm


Accuracy

±2% F.S.


Probe

HI 7634-00 (not included)


Temperature Compensation

Automatic, 5 to 50°C (41 to 122°F) with ß = 2%/°C


Calibration

manual, with CAL trimmer


Dosing Relay

1, max 2A (fuse protected), 250 Vac, 30 Vdc; contact closed when reading exceeds setpoint value


Setpoint

adjustable from 0 to 19.99 µS/cm


Overtime

adjustable, typically from 5 to approx. 30 minutes


Power Supply

12 VDC adaptor


Dimensions

83 x 53 x 99 mm (3.3 x 2.1 x 3.9")


Weight

200g
